SKU: AP-VC5F

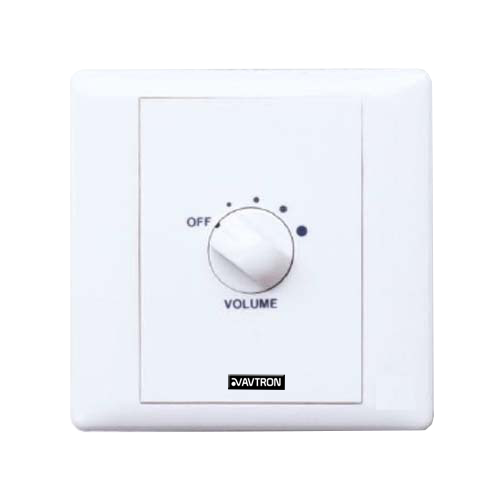

6W five-step volume controller with a 24V DC relay override, returning small zones to full level for priority announcements. 33dB total attenuation on 100V or 70V line.
The AP-VC5F adds emergency override to the compact 6W controller, making it the right choice for small rooms that fall inside a paging or evacuation zone.
In normal use it attenuates in five resistive steps of 3dB, to 33dB total, with a full-off position. When a 24V DC priority signal arrives the relay bypasses the attenuator and the room hears the announcement at full level.
The 50mm-deep body suits shallow back boxes, and the UV-protected white ABS plate measures 86 x 86mm at under 200g. Line input is 100V or 70V.
| Power Rating | 6W |
|---|---|
| 24V Relay Override | Yes |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 50mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <200g |
