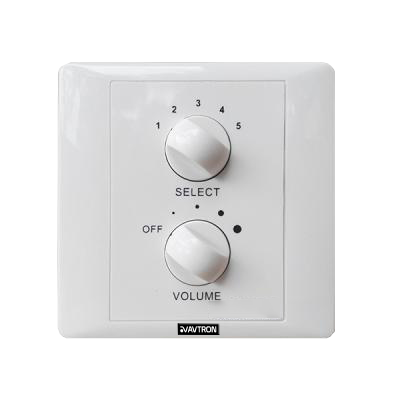

SKU: AP-VC6
The AP-VC6 lets a small room choose its own programme source as well as its own level. Five selectable input channels are switched at the plate, so background music, a paging feed or a training channel can be picked without touching the rack.
Four volume levels and a total power-off position keep operation simple for occupants who are not AV operators. The built-in transformer handles the line feed at the outlet.
The UV-protected ABS plate keeps its off-white finish in sunlit rooms and mounts either on the surface or into a standard wall box.
| Description | 100V Volume Controller |
|---|---|
| Power Rating | 6W |
| Channel Selector | 5 channel Input Source |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 50mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <100g |
