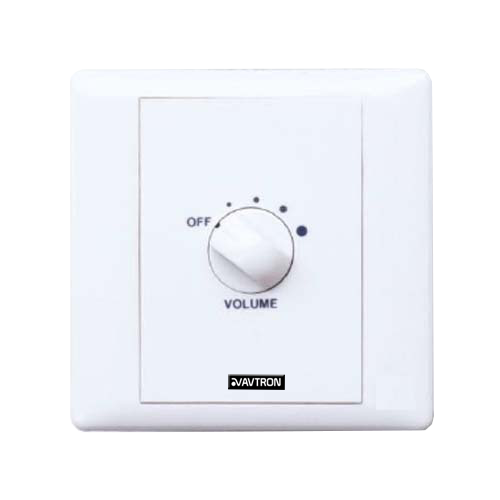

SKU: AP-VC5
Compact 6W volume controller for single-speaker rooms on 100V or 70V line, with five resistive steps giving 33dB of attenuation from a slim 50mm-deep wall plate.
The AP-VC5 is the entry point of the AVTRON wall controller range, sized for a room served by one or two ceiling speakers — an office, a consulting room, a small shop.
Five resistive steps at 3dB each cover 33dB of attenuation with a full-off position, giving occupants real control without oversizing the hardware for the load. It accepts 100V or 70V line input directly.
At 50mm the body is shallower than the higher-wattage models, which helps in thin partitions and shallow back boxes. The UV-protected white ABS plate measures 86 x 86mm and weighs under 100g.
| Color | White |
|---|---|
| Power Rating | 6W |
| Line Input | 100V or 70V |
| Volume Step | 5 steps Resistive, Mono |
| Attenuation Per Step | 3dB |
| Total Attenuation | 33dB |
| Enclosure | UV-protected ABS |
| Color | White |
| Mounting Way | Surface Mount or in-Wall Mount |
| Product Depth | 50mm |
| Outer Plate Dimension | 86(W)×86(D)mm |
| Weight | <100g |
