SKU: AP-IP600TM

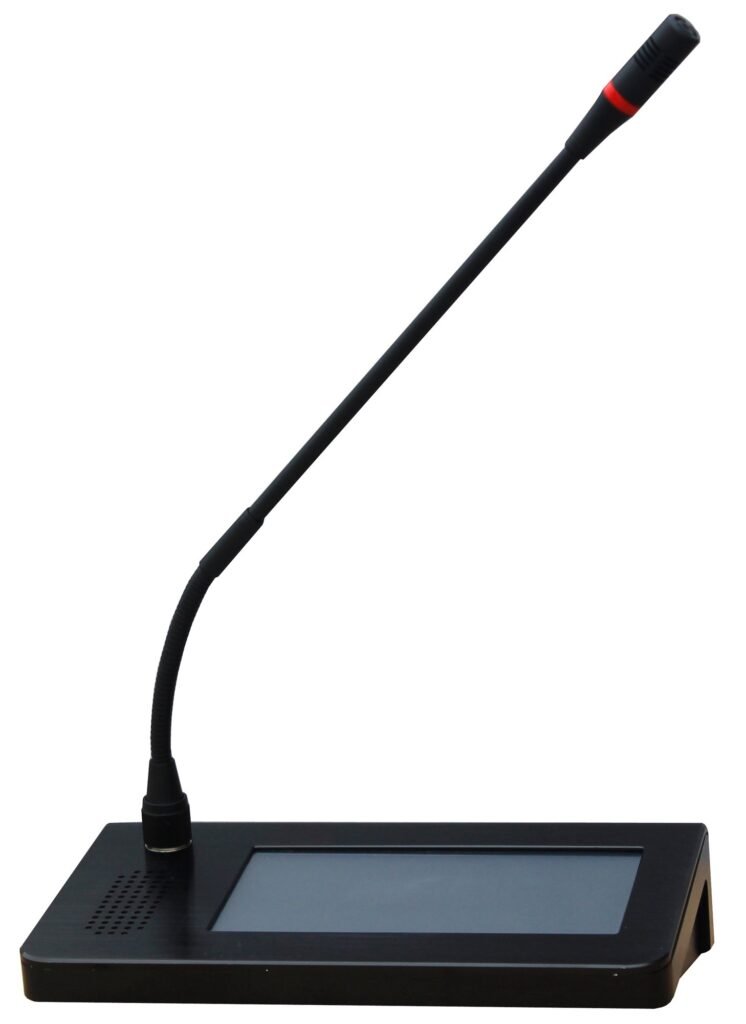

Touch screen IP call station with a 7-inch LCD and full duplex two-way communication between remote microphones, for zone paging across an IP public address system.
The AP-IP600TM is the operator position for an AVTRON IP public address system, replacing a bank of zone buttons with a 7-inch touch screen that shows the site as it actually is.
Full duplex two-way communication between remote microphones means a paging call can become a conversation — a reception desk and a loading dock can talk without either party releasing a key, which a conventional simplex paging station cannot do.
Connections cover an RJ45 network port, line input and output, a microphone input and a USB input for playing stored announcements or background material.
Audio runs MP3 and MP2 at 8-48kHz sampling across 20Hz-16kHz, with distortion at or under 0.3% and signal-to-noise better than 70dB. The unit measures 250 x 163 x 42mm at 2.2kg, drawing 10W or less from a 12V DC supply.
| Communication Protocol | TCP/IP, UDP, IGMP, ARP, UDP |
|---|---|
| Audio Format | MP3/MP2 |
| Sampling Rate | 8K~48KHz |
| Transmission Speed | 10M/100Mbps |
| Frequency Response | 20Hz~16KHz (+1dB, -3dB) |
| T.H.D. | ≤0.3% |
| S/N Ratio | >70dB |
| Connector | One RJ45 port, one line input, one line output, one mic input, one USB input |
| Working temp | -5 °C~ +40°C |
| Humidity | 10% ~ 90% |
| Power Consumption | ≤10W |
| Power Supply | DC 12V |
| Dimensions | 250x163x42mm |
| Weight | 2.2Kg |
