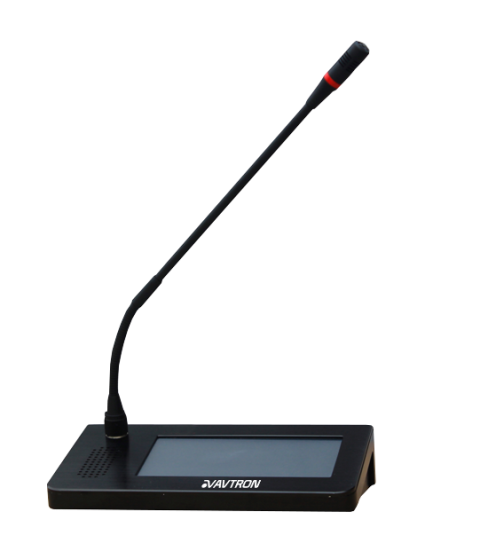

SKU: AP-N9EPM30
Network desktop paging station with a 7-inch TFT touch screen for all-zone, group, individual and multi-zone selection, plus two-way paging and a 3W monitor speaker.
The AP-N9EPM30 is the touch screen counterpart to the keypad paging station, and it earns its place on sites with many zones where a fixed keypad runs out of buttons.
Zones are selected on a 7-inch TFT display — all zones, a group, an individual zone or an ad hoc selection — and paging can run two-way for confirmation rather than broadcast-only.
An embedded operating system keeps the station appliance-like in reliability, and a 3W monitor speaker carries the return path clearly in a noisy office. Line and microphone inputs plus a line output handle external sources, and the gooseneck microphone detaches.
Audio is MP3 and MP2 at 8-48kHz with signal-to-noise of 70dB or better across 20Hz-16kHz. The full-metal black unit measures 50 x 210 x 150mm at under 2.5kg, running from 12V DC at under 10W.
| MIC | Gooseneck type (Detachable) |
|---|---|
| External MIC | Yes |
| Audio Input | 1 line in, 1 Mic in |
| Audio Output | 1 line out |
| Monitor Speaker | Yes, 3W |
| Display Screen | TFT 7" LCD |
| Network protocol | TCP,UDP,IGMP,DNS, ARP |
| Network port | RJ-45(10/100Mbps) |
| Audio compression | MP3, MP2 |
| Audio bitrate | 8kHz～48kHz |
| S/N ratio | ≥ 70dB |
| Frequency response | 20Hz-16KHz(+1dB, -3dB) |
| Power | DC 12V |
| Power consumption | <10 W |
| Working temp. & Humidity | -0 ℃ ~ 50 ℃, ≤ 90%RH (Not Condensing) |
| Mount | Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 50(H) x 210(W) x 150(D) mm, <2.5Kg |
