SKU: AP-AW560

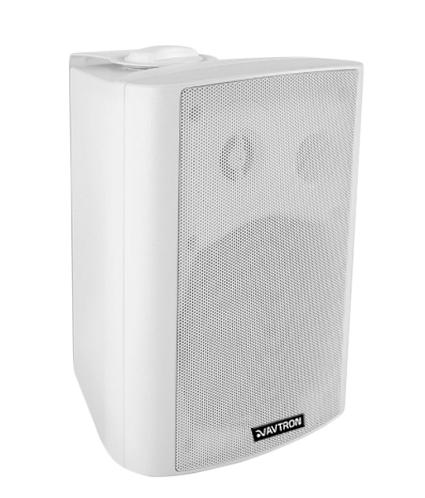

Active stereo wall speaker pair with a built-in 30W + 30W amplifier, 6-inch two-way drivers, multiple inputs, tone control and full circuit protection.
The AP-AW560 is the larger active pair in AVTRON's range, stepping up to 6-inch drivers and 30W per channel for rooms where the 20W model runs out of level.
Everything is still self-contained: the amplifier is in the speaker, so the room needs a power outlet and a source, not a rack. Inputs cover two RCA, stereo 3.5mm, microphone and line.
Circuit protection covers high temperature, short circuit, overload and clip — worth having on an active speaker that will be driven hard by users who cannot see a meter.
Two-way drivers deliver 30W per channel at 8 ohms across 70Hz-20kHz ±0.5dB, with better than 95dB signal-to-noise, 0.05% distortion and ±10dB treble and bass adjustment. Black ABS enclosures with metal grilles measure 290 x 245 x 220mm with built-in wall brackets.
| Rated Power Output | 30W + 30W @ 8Ohms |
|---|---|
| Freq. Response | 70Hz-20KHz/1W, ±0.5dB |
| Speaker type | 5"x1, 1.5"x1 2 Way speaker drivers |
| Input Connector | RCAx2, Stereo 3.5mmx1, MICx1, Linex1 |
| S N Ratio | >95dB |
| LED Indication | Power & Channel |
| Treble/Bass control | ±10dB |
| THD | 0.05% |
| Circuit Protection | High temp., Short Circuit, Overload, Clip |
| Installation | Wall |
| Mount | Built in wall mount bracket |
| Enclosure | ABS plastic enclosure, Metal grille |
| Color | Black |
| Product Dimension | 290(W) x 245(D) x 220(H)mm |
| Weight | <10Kg PAIR |
