SKU: AP-DP204
Uni-directional condenser desktop microphone running on 48V phantom power or 3V DC, with an on/off switch and a 3m lead to an unbalanced XLR connector.

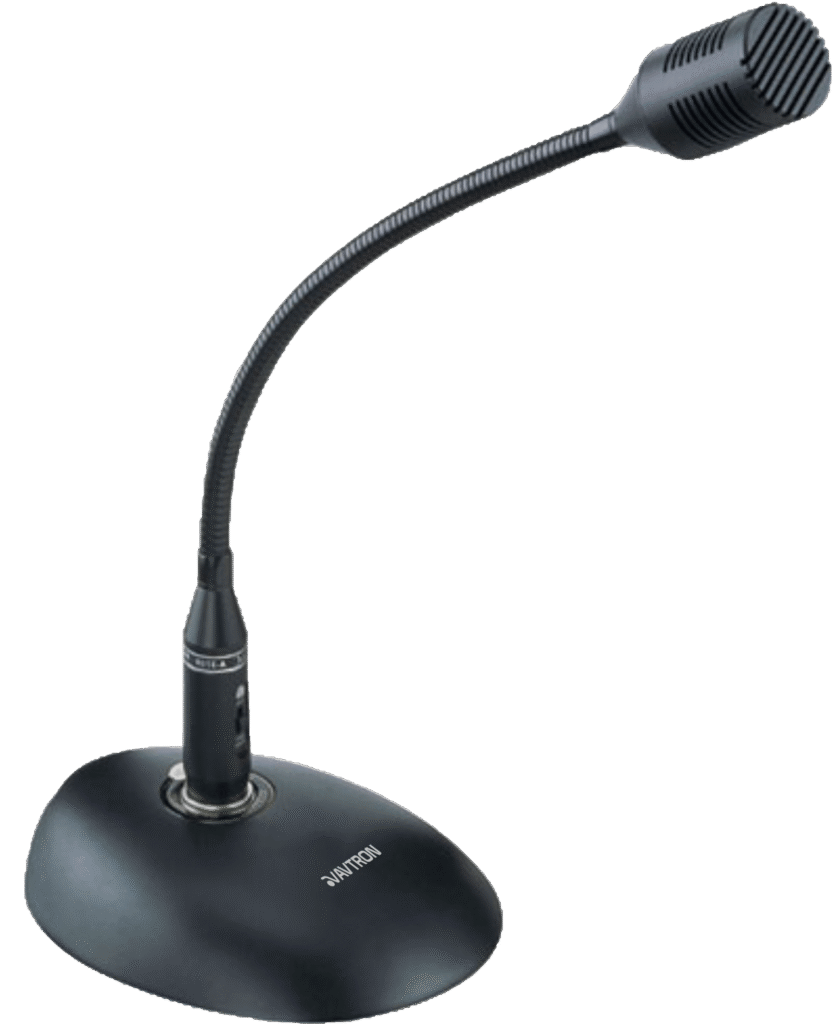

The AP-DP204 is the phantom-powered desktop microphone in the AVTRON range, aimed at fixed announcement and paging desks where the gooseneck stays where it is put and the operator needs a clear press-to-talk position.
Running on 48V phantom power, with a 3V DC alternative for panels that cannot supply phantom, it suits both modern mixer amplifiers and older installed systems. The uni-directional capsule keeps pickup on the operator and away from a busy control room.
Sensitivity is -29dB at 150 ohms unbalanced, and the 3m cable gives useful reach across a desk to a rack or wall plate. The unit weighs 0.56kg.
| Frequency response | 100-75Khz |
|---|---|
| Capsule type | Condenser |
| Polar pattern | Uni-direction |
| Sensitivity | -29 +/-1dB |
| Cable | 3m |
| Impedance | 150 ohm (unbalance) |
| Power supply | 48V phantom power/3V DC |
| Connector | N.A |
| Enclosure | N.A |
| Weight | 0.56 kg |
