SKU: AP-S9SIT

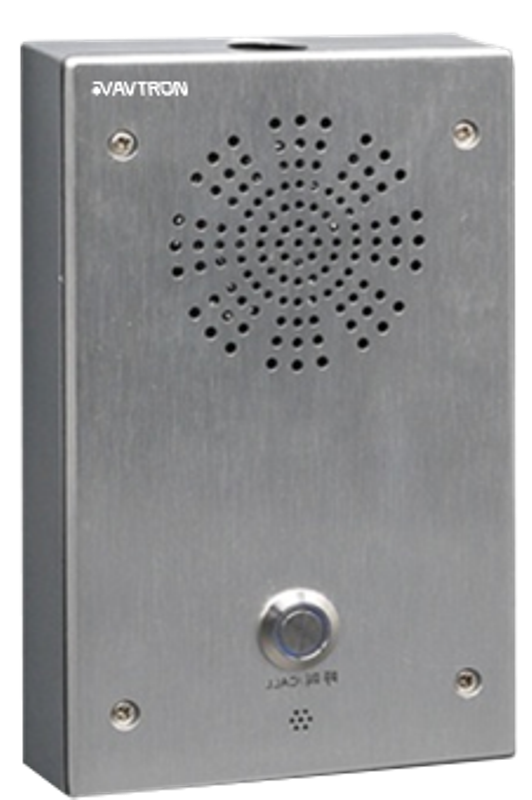

SIP calling terminal in a stainless steel housing with built-in microphone and speaker, giving hands-free two-way intercom to other SIP phones and devices at a single button press.
The AP-S9SIT is a fixed intercom point for SIP systems, placed where someone needs to reach help without a handset — a lift lobby, a stairwell, a plant room, an accessible toilet, a reception after hours.
One button places a hands-free call to programmed SIP telephones and devices, with an optional two-button variant where a second destination is needed. Built-in microphone and speaker handle full two-way conversation.
Because it is SIP-native it appears on the phone system like any other extension, so call routing, escalation and out-of-hours diversion are configured with the tools the organisation already uses.
Audio covers MP3, WAV and G.711 at 8-32kHz 16-bit. The stainless steel housing measures 160 x 240 x 42mm at under 0.5kg, drawing under 500mA from 12V DC, rated 0°C to 60°C.
| Two-Way communication | Yes, Built-in MIC, Speaker |
|---|---|
| Network protocol | SIP,TCP,UDP,DNS,ARP,IGMP,ICMP |
| Network port | RJ-45(10/100Mbps) |
| Audio type | MP3/WAV/G.711 |
| Frequency/Sampling rate | 8kHz-32 kHz, 16 bit |
| Power | DC-12V, <500mV |
| Dimension | 160(W) x 240(D) x 42(H)mm |
| Working temp. | 0 ℃ ~ 60 ℃ |
| Enclosure | Stainless steel |
| Weight | <0.5Kg |
