SKU: AP-S9SPM

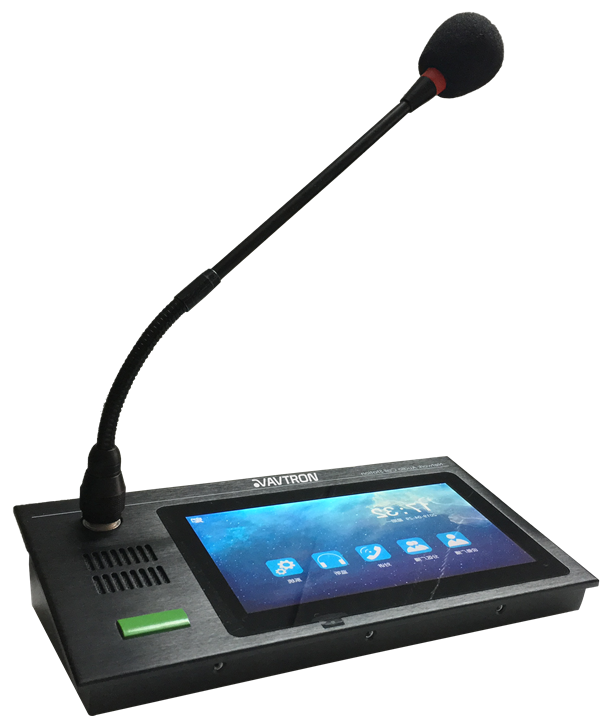

SIP paging station with a 7-inch TFT touch screen for zone and group selection, a 3W monitor speaker and detachable gooseneck microphone in a full-metal desktop housing.
The AP-S9SPM is the touch screen paging station in AVTRON's SIP range, and it scales where a keypad cannot: sites with dozens of zones, or zone lists that change as a building is reconfigured.
Zones and groups are selected on a 7-inch TFT display, with intercom as well as broadcast paging. As a native SIP device it registers to the existing phone system rather than requiring PA-specific server software.
A 3W monitor speaker carries the return path, the gooseneck microphone detaches for transport, and line input and output connect external audio sources.
Audio samples at 8-32kHz with ADPCM encoding across 70Hz-12.5kHz. The full-metal black unit measures 50 x 210 x 150mm at under 2kg, drawing under 10W from DC power.
| MIC | Gooseneck type(detachable) |
|---|---|
| Audio input | 1 Line in |
| Audio output | 1 Line out |
| Monitor speaker | Yes, 3W |
| Display screen | TFT 7" LCD |
| Network protocol | SIP, IP, ARP, IGMP, ICMP, DNS, DHCP, UDP |
| Network port | RJ-45(10/100Mbps) |
| Audio details | 8kHz～32kHz sampling, ADPCM encoding |
| Frequency response | 70Hz-12.5KHz |
| Power | DC Power |
| Power consumption | < 10 W |
| Working temp. & humidity | -0 ℃ ~ 50 ℃, ≤ 90%RH (Not condensing) |
| Mount | Table top |
| Enclosure & Color | Full metal, Black |
| Dimension & Weight | 50(H) x 210(W) x 150(D) mm, <2Kg |
