SKU: AP-C19

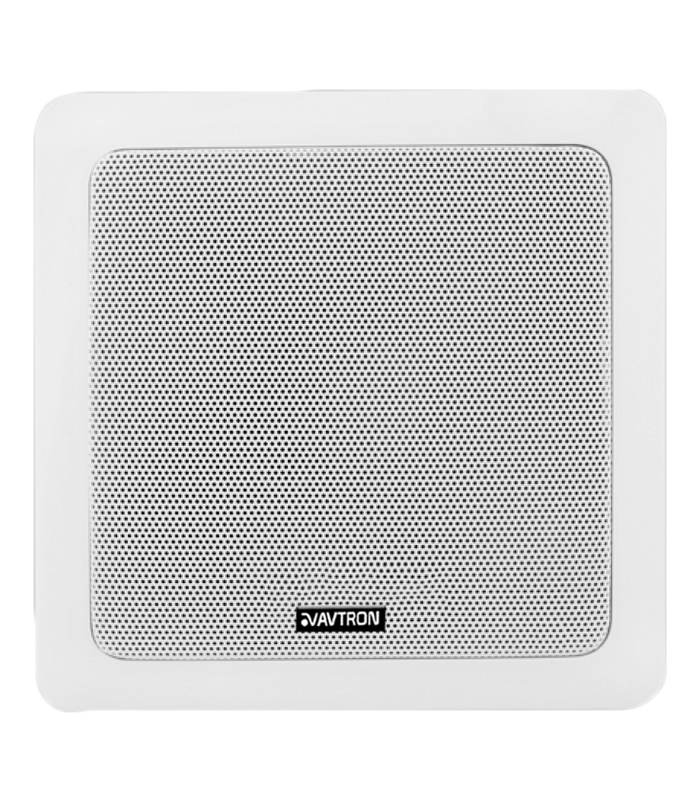

Square-format coaxial ceiling speaker with 100V/70V line matching transformer and 6W/3W taps, fitting a 170mm square cutout in a white RAL 9016 finish.
The AP-C19 is the square option in AVTRON's ceiling speaker range, and the choice is architectural rather than acoustic: in ceilings laid out on a square grid of tiles, downlights and diffusers, a round speaker is the element that looks wrong.
The coaxial driver gives the same sound quality benefits as the round models, with the line matching transformer maintaining low frequency response while supporting higher SPL demands.
Taps at 6W and 3W on a 100V or 70V line allow level trimming per room, covering 100Hz-16kHz with 91dB sensitivity and maximum output to 102dB.
The ABS enclosure with metal grille measures 215 x 215 x 178mm, fitting a 170 x 170mm cutout, at under 1.3kg in white RAL 9016.
| Rated power out | 6W/3W |
|---|---|
| Rated power at 100V | - |
| Rated power at 70V | - |
| Line input | LMT100/70V |
| SPL | 91dB, Max up to 102dB |
| Speaker type | 5” x 1 |
| Freq. response | 100Hz-16KHz |
| Cutout size | 170 x 170 mm Dia. |
| Product dimension | 215 x 215 x 178 mm (H) Dia. |
| Distortion | - |
| Installation | In ceiling |
| Enclosure | ABS Plastic, Metal Grille |
| Back cover | No |
| Color | White RAL 9016 |
| Weight | <1.3Kg |
