SKU: AP-W260
UHF wireless conference main unit addressing up to 256 units and powering 60 microphones, with noise cancellation and a dedicated audio output for recording proceedings.

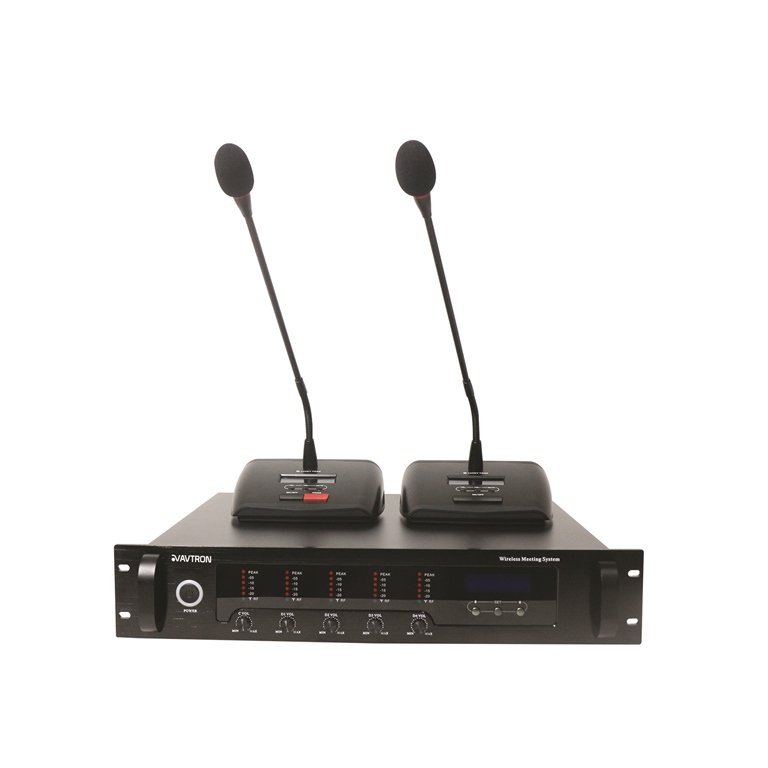

The AP-W260 runs an AVTRON UHF wireless conference system without the cable runs a wired system needs. It addresses up to 256 units and powers 60 microphones, so a large chamber can be covered while leaving the floor clear.
Two-way UHF transmission across 740-790MHz reaches 50 to 75 metres with adjustable +6.5dBm output, and high-level noise cancellation keeps the noise floor down in reverberant rooms. Signal-to-noise better than 105dB with distortion under 0.5% carries speech cleanly through the chain.
A dedicated audio output feeds a recorder or streaming encoder, giving a clean archive of proceedings separate from the room feed. Balanced XLR and unbalanced jack outputs are provided, and the 2U full-metal chassis racks in 19-inch furniture or sits on a table, drawing under 8W.
| Output | XLR Balanced 0-600mV, Jack unbalanced 0-300mV |
|---|---|
| System Capacity | 50 Units, Expandable up to 250 units |
| Frequency Carrier | UHF based Two-Way |
| Transmitting Frequency | 740MHz-790MHz |
| S/N Ratio | >105dB |
| THD | <0.5% |
| Transmission Power | +6.5dbm Adjustable |
| Frequency response | 60 ~ 16KHz |
| Modulation mode | FSK |
| Communication Distance | 50 ~ 75mtrs |
| Channel Qty | 5 Channels (1 Chairman, 4 Delegates) |
| Power Input | 12V ~ 15V DC Power Adaptor, 1Amp |
| Power Consumption | <8W |
| Mount | 2U 19" Rack Mount, Table Top |
| Enclosure & Color | Full Metal, Black |
| Dimension & Weight | 100(H) x 483(W) x 360(D) mm, <9Kg |
