SKU: CX-MJ868

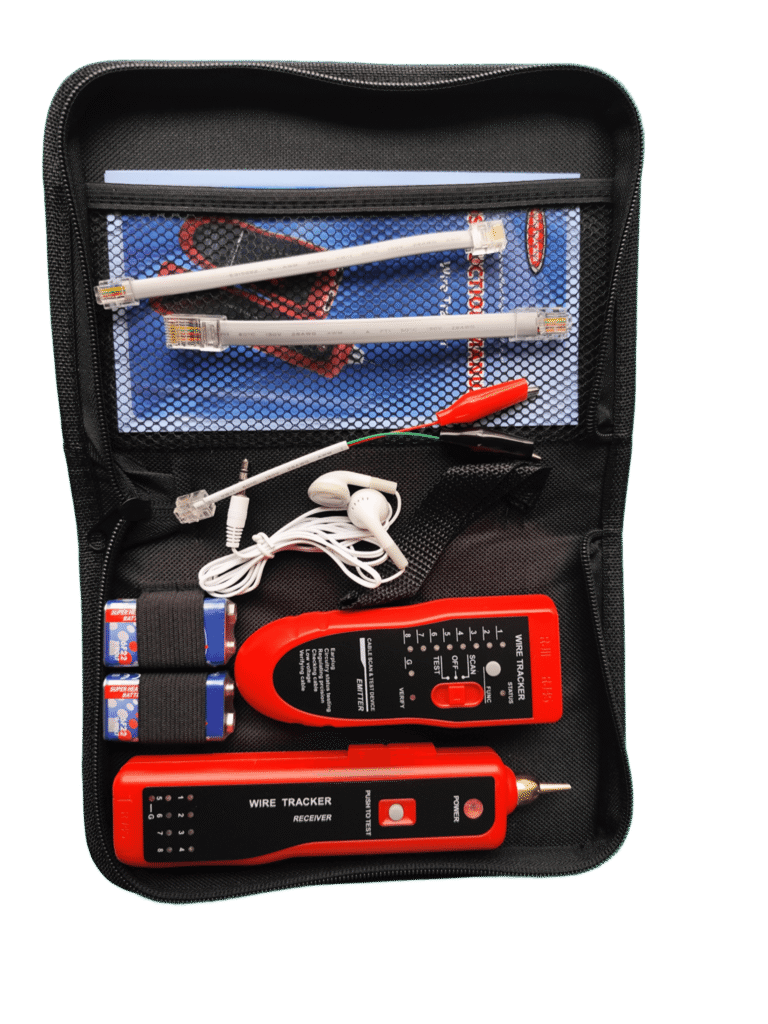

Professional wire tracking and cable testing tool for quickly identifying and tracing RJ45, RJ11 and other low-voltage cables. Features adjustable volume, LED signal indication and up to 2 km signal transmission.
| Model | CX-MJ868 |
|---|---|
| Specification | Details |
| Product Type | Wire Tracker / Cable Tester |
| Power Supply | DC 9V battery |
| Max. Working Current | Emitter ≤10 mA |
| Max. Working Current | Receiver ≤30 mA |
| Signal Transmission | Multi-frequency impulse |
| Signal Output Level | 8 Vp-p |
| Signal Transmission Distance | ≥2 km* |
| Supported Cables | UTP, STP, RJ45, RJ11 and metal wires |
| Cable Testing | Wire tracing, wire sequence, open/short circuit testing |
| Indicators | LED wire-finding and wire-sequence indicators |
| Audio | Adjustable volume + earphone jack |
| Spotlight | Built-in LED spotlight |
