SKU: CX-PoE102E

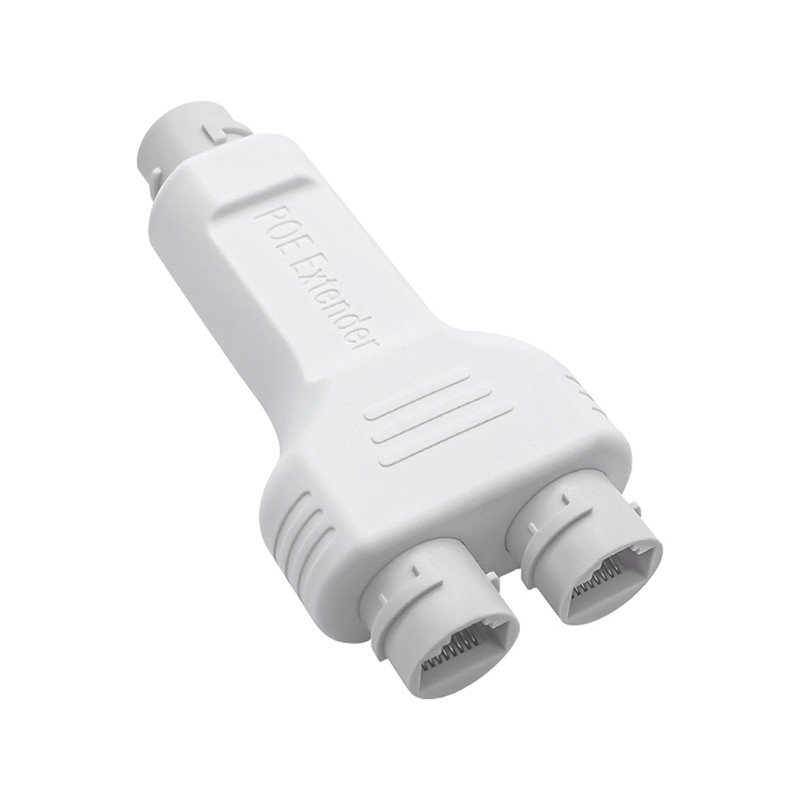

The CX-PoE102E is a weatherproof PoE extender that takes one PoE input and splits it to two PoE outputs, ideal for expanding a camera network without extra power supplies. It delivers up to 30W (25.5W across the two intelligently-assigned outputs) to IEEE 802.3af/at devices at 100Mbps, with 2kV surge protection and an IP66 enclosure for outdoor installation. Plug-and-play — no configuration required.
| Product | 1 - 2 out Waterproof POE Extender |
|---|---|
| PoE | IEEE802.3af/at Standard POE |
| PoE Power | 30W Max |
| PoE Out | 25.5W Max 1-2 ports intelligently assigned |
| Data Transmission | 100MBPS |
| Data Transfer | 0.6Gbps |
| Power supply pin | 1/2(+),3/6(-) |
| Lightning protection | 2kv 8/20us |
| Enclosure | PVC |
| Outdoor | IP66 |
