SKU: CX-PoE104E-M

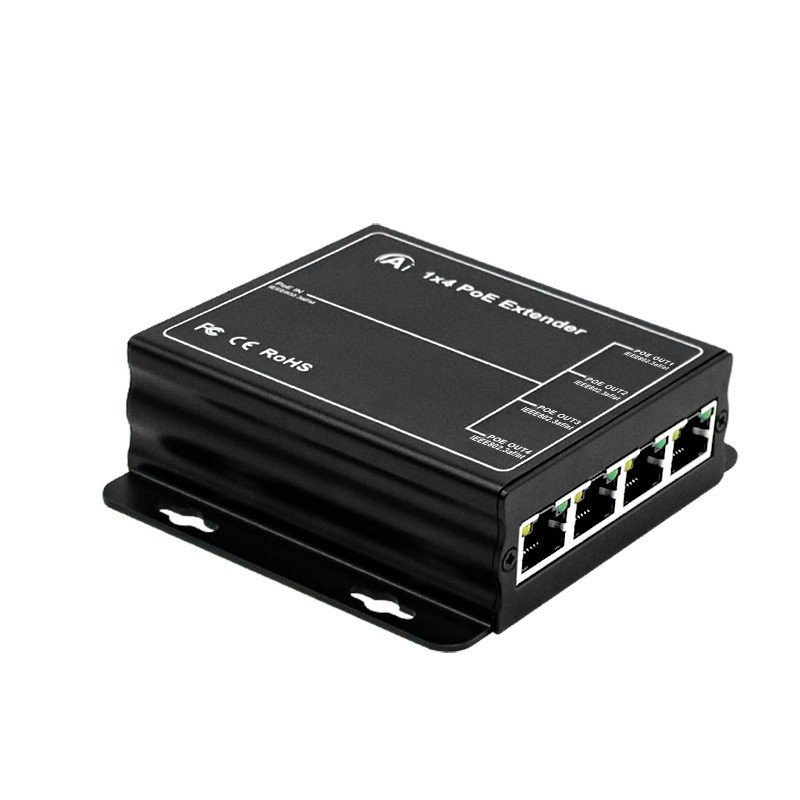

The CX-PoE104E-M is a 1-in, 4-out PoE extender in a durable metal enclosure for indoor use. It takes a single PoE input and distributes power and data to four IEEE 802.3af/at devices at 100Mbps, with built-in surge protection. Plug-and-play with no configuration required — a simple, cost-effective way to expand a PoE camera or network run.
| Product | 1 - 2 out Waterproof POE Extender |
|---|---|
| PoE | IEEE802.3af/at Standard POE |
| PoE Power | 30W Max |
| PoE Out | 25.5W Max 1-2 ports intelligently assigned |
| Data Transmission | 100MBPS |
| Data Transfer | 0.6Gbps |
| Power supply pin | 1/2(+),3/6(-) |
| Lightning protection | 2kv 8/20us |
| Enclosure | Metal |
| State | Indoor |
