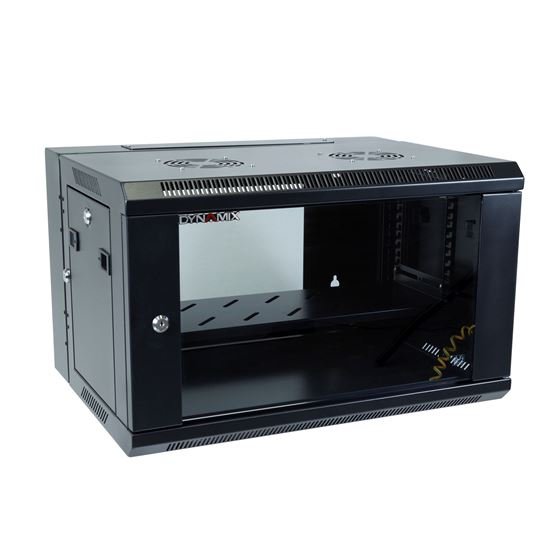

DYNAMIX 6RU Universal Swing Wall Mount Cabinet Removable Back mount – RSFDS6-450

Network Racks Dynamix

DYNAMIX 6RU Universal Swing Wall Mount Cabinet Removable Back mount – RSFDS6-450

Name: DYNAMIX 6RU Universal Swing Wall Mount Cabinet Removable Back mount – RSFDS6-450
Brand: Dynamix
SKU: RSFDS6

SKU: RSFDS6

The DYNAMIX RSFDS6-450 is a 6RU universal swing wall-mount cabinet supplied fully assembled and ready to use. Its removable back-mount plate and reversible left/right hinges make installation and servicing easy, even in tight spaces, with cable entry at the rear, top and bottom. Includes a fixed shelf, cage nuts, a drop-in dual-fan kit, removable lockable side panels and a lockable safety-glass front door. Measures 600(W) × 450(D) × 368mm(H) with a 60kg load rating; gloss-black finish.

🔒

Trade Account Required
Log in to see trade pricing and add to cart — or request a quote, no account needed.

Ready Use

Universal Swing

Removable Back Mount

Standard Accessories

Supplied complete, no assembly required
Removable Back mount supplied with left & right hinges
100mm back mount with cable entry rear, top & bottom
1 fixed shelf & 10 cage nuts included
Drop-in dual fan kit
Removable lockable side panels
Reversible lockable safety glass front door
Bonding earth wire installed
Gloss black colour, easy clean surface
Max loading: 60kg
Complies to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standards.
2 Year warranty subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation plus a 1-year Warranty on fans
Optional D Series Wall Mount Racks:
RSFDS4-450 -DYNAMIX 4RU Universal Swing Wall Mount Cabinet. Removable Back mount supplied with Left & Right Hinges (600 x 450 x 281mm). Includes 10x nuts. Gloss black colour.
RSFDS6-450 - DYNAMIX 6RU Universal Swing Wall Mount Cabinet. Removable Back mount supplied with Left & Right Hinges (600 x 450 x 368mm). 1x Fixed Shelf, 10 x cage nuts.
RSFDS6 - DYNAMIX 6RU Universal Swing Wall Mount Cabinet. Removable Back mount supplied with Left & Right Hinges (600 x 550 x 368mm). Includes 2x fans, 1 x fixed shelf, 10 x cage nuts.
RSFDS9 - DYNAMIX 9RU Universal Swing Wall Mount Cabinet. Removable Back mount supplied with Left & Right Hinges (600 x 550 x 501mm). Includes 2x fans, 1 x fixed shelf, 10 x cage nuts.
RSFDS12 - DYNAMIX 12RU Universal Swing Wall Mount Cabinet. Removable Rackmount supplied with Left & Right Hinges (600 x 550 x 635mm). Includes 1 x fixed shelf, 10 x cage nuts.
RSFDS12-600 - DYNAMIX 12RU 600mm Deep Universal Swing Wall Mount Cabinet. Removable Backmount (600 x 600 x 635mm). Includes 2x fans, 1x fixed shelf, 10x cage nuts. 6-Way PDU Installed.
RSFDS18 - DYNAMIX 18RU Universal Swing Wall Mount Cabinet. Removable Rackmount supplied with Left & Right Hinges (600 x 550 x 901mm). Includes 1 x fixed shelf, 10 x cage nuts.
RSFDS18-600 - DYNAMIX 18RU 600mm Deep Universal Swing Wall Mount Cabinet. Removable Backmount (600 x 600 x 901mm). Includes 2x fans, 1x fixed shelf, 10x cage nuts. 6-Way PDU installed.
RSFDS24 - DYNAMIX 24RU Universal Swing Wall Mount Cabinet. Removable Rackmount supplied with Left & Right Hinges (600 x 550 x 1167mm). Includes 1 x fixed shelf, 10 x cage nuts.
RSFDS24-600 - DYNAMIX 24RU 600mm Deep Universal Swing Wall Mount Cabinet. Removable Backmount (600 x 600 x 1167mm). Includes 2x fans, 1x fixed shelf, 10x cage nuts. 6-Way PDU installed.
RSFDS27-600 - DYNAMIX 27RU 600mm Deep Universal Swing Wall Mount Cabinet. Removable Backmount (600 x 600 x 1365mm). Includes 2x fans, 1x fixed shelf, 10x cage nuts. 6-Way PDU installed.

Dynamix RSFDS6-450 - Cat6 UTP Keystone RJ45 Slimline Jack

Model	RSFDS6-450
Specification	Details
Capacity	6RU
Dimensions	600 mm(W) x 450 mm(D) x 368 mm(H)
Mounting Type	Wall Mount (Universal Swing Frame)
Hinge Configuration	Left & Right Reversible Hinge Option (Removable Back Mounting Plate)
Cooling	2x Pre-installed Top Roof Fans
Front Door	Lockable toughened glass door
Side Panel	Openable & Lockable
Cable Entry	Top and bottom knockout ports
Color	Black
