SKU: CX-MG600

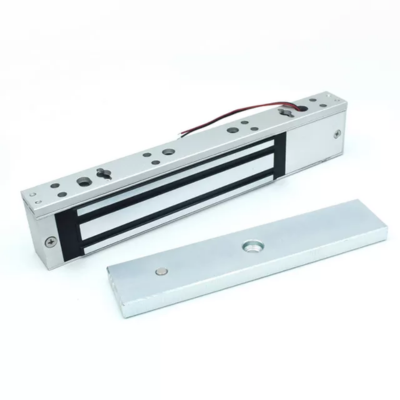

The CX-MG600 is a waterproof electromagnetic lock (mag lock) offering up to 600lbs (280kg) of holding force — well suited to gates and doors in small and medium-sized business access-control systems. It runs on 12V DC (<500mA) with an LED lock-status indicator and a simple two-wire connection. Optional ZL and L brackets are available for inward-opening and frameless applications.
| Wire | 2 Wires |
|---|---|
| LED | Yes |
| Holding force | 600lbs(280kg) |
| Power | DC 12V <500mAmp |
| Lock L | 25cm |
| Lock W | 4.8cm |
| Lock H | 2.5cm |
| A Plate L | 18cm |
| A Plate W | 4.8cm |
| A Plate H | 1.2cm |
