Gate Automation Quiko

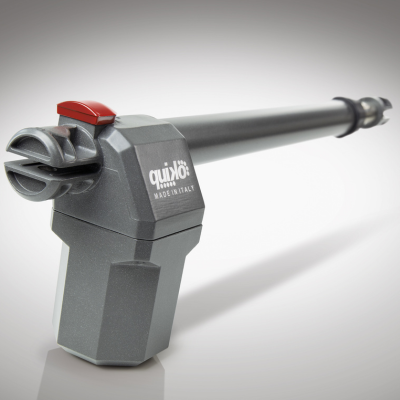

Eon 240V Swing Gate Actuator For Gates 4Meters QK-E400

SKU: QK-E400

🔒
Trade Account Required
Log in to see trade pricing and add to cart.
240V AC Power
Silent Design
4Mtr Max Capacity
600KG 2M Leaf
300KG 4M Leaf
Manual Release
  • EON 240V is the linear swing gate operator of QUIKO particularly intended for residential applications.
  • Leaves up to 5m(V600) can be automated with ease with this slim motor, where limited space is available.
  • The actuator is self-locking and can be unlocked easily in case of electrical blackout by means of the supplied unlocking key.
  • EON is almost maintenance free and designed to last long, sturdiness of materials .

Quiko QK-400 - Eon 240V Swing Gate Actuator For Gates up to 4Meters

ModelQK-E400 | QK-E400B
Power supply230Vac | 24Vdc
Current absorbed (motor)0.9 ~ 1.4 |1.7 - 6.64
Power absorbed (W)320 | 160
Protection levelIP 54 | IP 54
Opening time (sec)18 | 18
Opening time (sec) V60020 | 20
Stroke (mm)300 | 400
Max. thrust (N)3000 | 2000
Max. leaf length (m)4.5Mtr
Working temp. (°C Min/Max)-30 ~ +70 | -30 ~ +70
Weight (kg)9 | 9
Size2m | 3m | 4m | 5m
QK-E400700kg | 400kg | 300kg
QK-E400B600kg | 400kg | 300kg
QK-E600900kg | 700kg | 500kg |300kg
QK-E600B800kg | 600kg | 500kg |300kg
  • 2x Swing gate Actuators/Openers
  • 1x Controller
  • 2x Remotes
  • 1x Accessories
