SKU: AV-HD14-SP

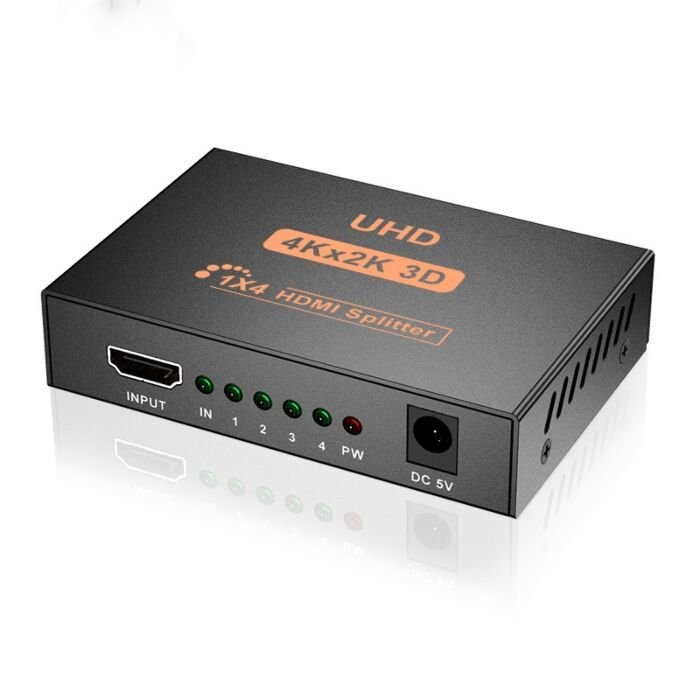

This 1×4 HDMI Splitter distributes a single HDMI input to up to four HDMI displays while maintaining high-quality digital video and audio. Supporting resolutions up to 4K/2K @ 30Hz, it is suitable for CCTV monitoring, commercial displays, meeting rooms, digital signage and home entertainment applications.
| Model | AV-HD14-SP |
|---|---|
| Specification | Details |
| HDMI Input | 1 19Pin Female |
| HDMI Output | 4 19Pin Female |
| Maximum Resolution | 4K/2K @ 30Hz |
| Video Support | 4K, 2K, 1080p |
| Video Bandwidth | Up to 4.95Mhz |
| Housing Metal | Case |
| Power Supply | DC 5V/1A |
| Installation | Plug & Play |
