SKU: AV-HS41A-M

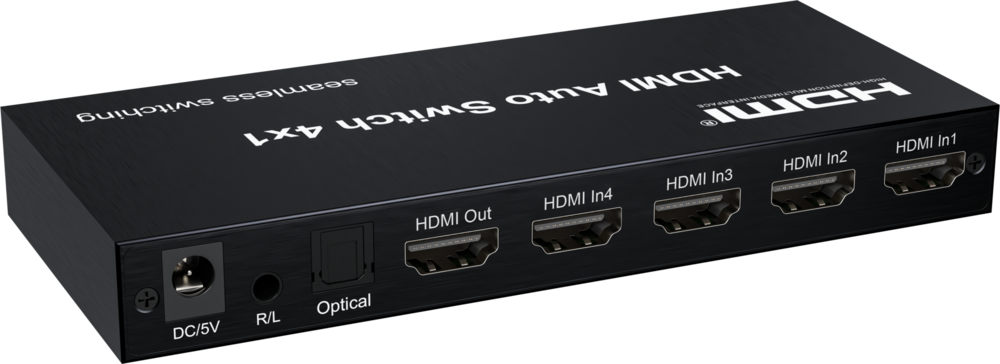

Automatically switch between up to four HDMI input sources and connect them to a single HDMI display.
This 4×1 HDMI Auto Switch supports seamless switching between multiple HDMI sources, with both automatic and manual switching modes. It supports resolutions up to 4K @ 30Hz and is suitable for CCTV displays, media players, gaming consoles, set-top boxes and other HDMI devices.
| HDMI Version | HDMI 1.4b |
|---|---|
| HDMI Resolution | Up to 3840*2160/30Hz |
| Support Video Format | 3D |
| Support Video Color Format | 24/30/36 bit deep color |
| Support Audio Format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max Bandwidth | 340MHz |
| Max Baud Rate | 3.4Gbps |
| Input Cable Distance | ≤8m AWG26 HDMI standard cable |
| Output Cable Distance | ≤8m AWG26 HDMI standard cable |
| Power | DC5V/1A |
| Temperature | (-15 to +55℃) |
| Dimension | 167(l) x67(W) x28(H) mm |
| Weight | 240g |
