SKU: AV-HS41S-M

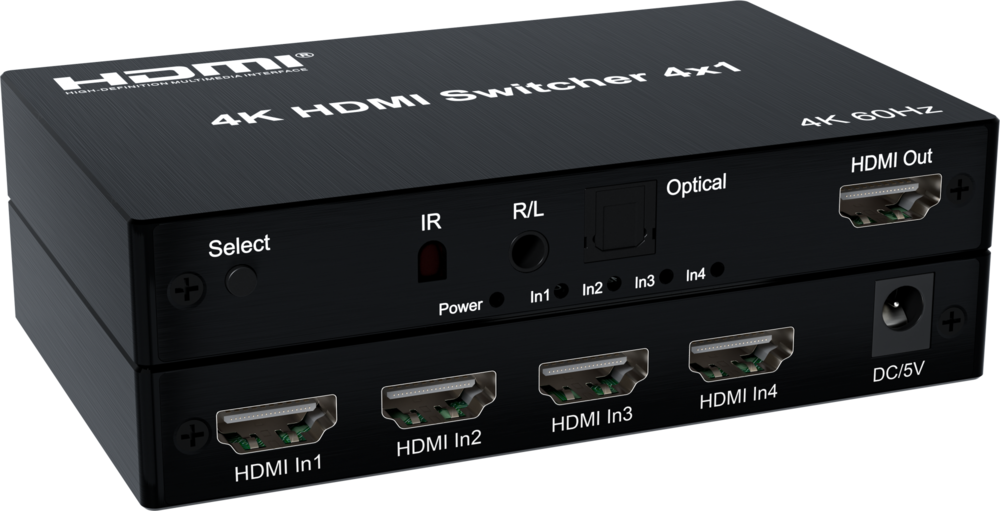

Switch between four HDMI sources and output to one HDMI display, with additional digital and analogue audio extraction.
This 4×1 HDMI Switcher supports HDMI resolutions up to 4K @ 60Hz and provides audio extraction through both 3.5mm headphone and optical digital audio outputs. It supports 3D video, Deep Color and common LPCM, DTS and Dolby audio formats.
| Product Type | 4×1 HDMI Switcher |
|---|---|
| HDMI Inputs | 4 |
| HDMI Output | 1 |
| Maximum Resolution | 3840 × 2160 @ 60Hz |
| 3D Support | Yes |
| Deep Color | 8 / 10 / 12-bit |
| Audio Extraction | Yes |
| Analogue Audio Output | 3.5mm |
| Digital Audio Output | Optical |
| Audio Formats | LPCM / DTS / Dolby AC-3 |
| Audio Channels | Up to 5.1-channel |
| Maximum Bandwidth | 600MHz |
| Maximum Data Rate | 18Gbps (3 × 6Gbps) |
| Max. Working Current | <900mA |
| Power Input | AC 100–240V, 50/60Hz |
| Power Output | DC 5V / 1.5A |
| Operating Temperature | -15°C to +45°C |
| Operating Humidity | 5–90% RH, non-condensing |
| Dimensions | 122(l) × 80(W) × 19(H) mm |
| Weight | 170g |
