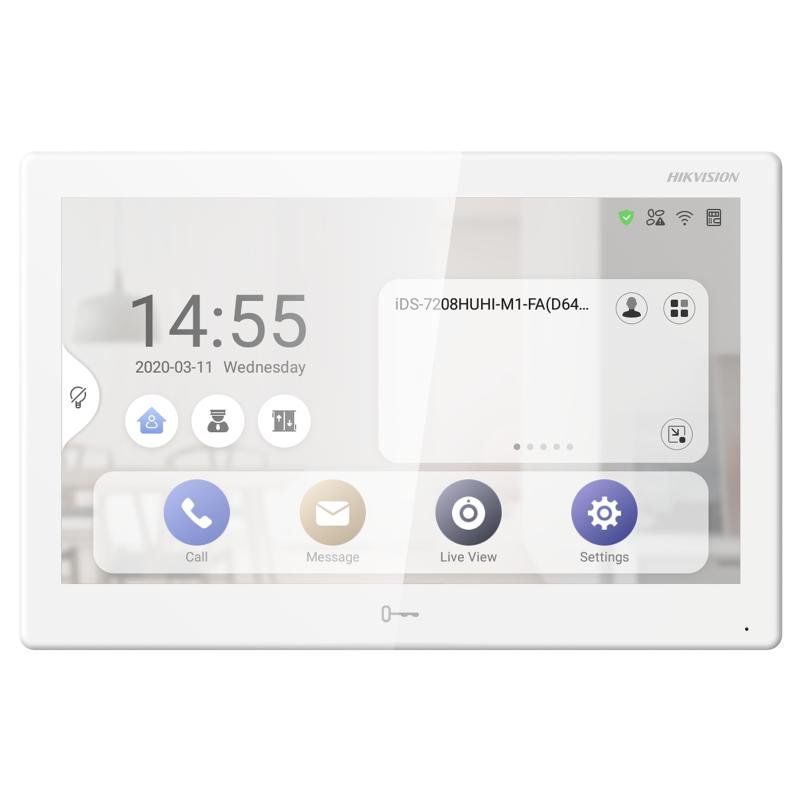

SKU: DS-KH9510-WTE1
Android indoor station with a 10.1-inch IPS touch screen, built-in wireless intrusion panel and 7-second video verification from alarm systems, plus third-party app support.
The DS-KH9510-WTE1 combines intercom, Android tablet and wireless intrusion panel in one 10.1-inch wall unit.
The built-in wireless intrusion panel is what separates it from the other indoor stations: the household's alarm system is armed, disarmed and managed here, with no separate keypad on the wall beside it.
It receives seven seconds of video verification from alarm systems, so an activation arrives with footage attached rather than as a bare event — the difference between knowing something triggered and knowing what triggered it.
Android app installation and open third-party software integration allow building management or concierge tools to run on the same panel, with Hik-Connect built in for all-day video intercom and live view on a phone.
The 10.1-inch capacitive IPS runs 1024 x 600 with 1GB RAM and 8GB storage, eight alarm inputs, RS-485, Wi-Fi 802.11 b/g/n, 16 linked cameras and 17 linked doorphones. Finished in white with micro SD support.
| Operating system | Embedded Android operation system |
|---|---|
| ROM | 8 GB |
| RAM | 1 GB |
| CPU | Embedded processor |
| Screen size | 10.1-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful IPS |
| Resolution | 1024 × 600 |
| Audio compression standard | G.711 U, G.711 A |
|---|---|
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Event capacity | 200 |
|---|---|
| Notice capacity | 200 |
| Linked indoor station capacity | 5 |
| Linked network camera capacity | 16 |
| Linked doorphone capacity | 17 |
| Communication protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wired network | Support |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| USB | For debug only |
| TF card | Reserved |
| Alarm output | 2 |
| Power interface | 1 |
| Installation | Surface mounting |
|---|---|
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05") |
| Power supply | IEEE802.3af, standard PoE 12 VDC, 1 A |
| Application environment | Indoor |
| Power consumption | ≤ 12 W |
| Language | English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian |
