SKU: DS-KD-K12

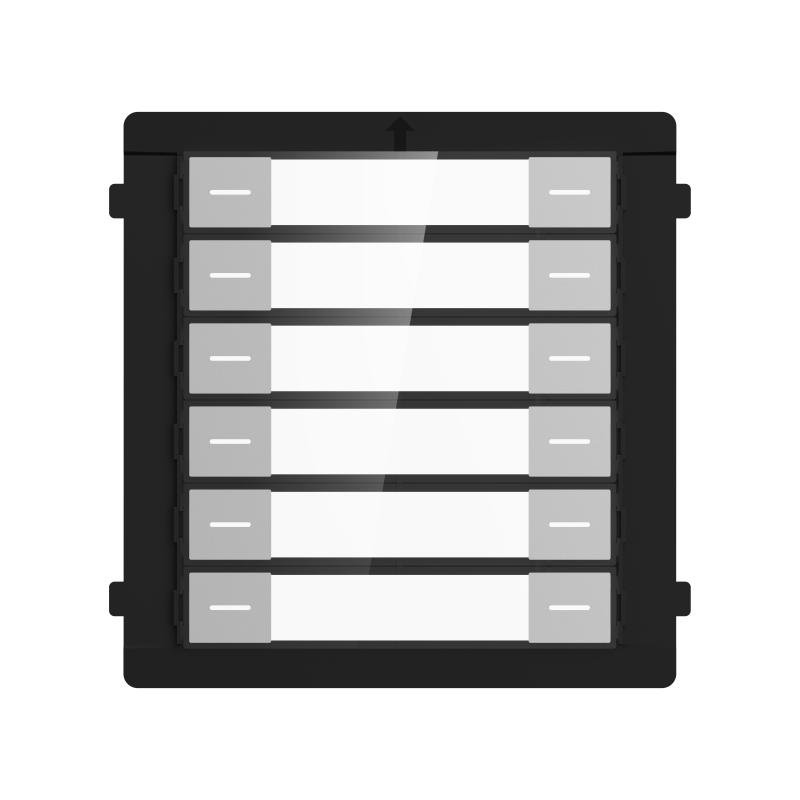

Twelve-button nametag module for the KD8 modular door station, doubling call capacity per module with backlit labels in an IP65 housing.
The DS-KD-K12 doubles the call buttons of the six-button module, covering twelve tenancies from a single module position.
On a twelve-unit building that means one module instead of two, which keeps the door station narrower and the bracket smaller — often the deciding factor on a narrow entry column or beside a door frame.
Each button carries a nametag with backlight compensation behind it, so names stay readable at night without a separate light.
The module is IP65 rated with an RS-485 connection to the main module, measures 98.2 x 100.2 x 33.7mm at 179g, draws 2W or less, and operates from -30°C to 55°C in flush or surface mounting.
| Processor | Embedded high performance processor |
|---|
| RS-485 | 1 |
|---|
| Button | 12 physical buttons |
|---|---|
| Power consumption | ≤ 2 W |
| Weight | Net weight: 179 g; Gross weight: 336.4 g |
| Protective level | IP65 |
| Working temperature | -30 °C to 55 °C |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33") |
| Installation | Flush mounting, surface mounting |
