SKU: DS-KD8003Y-IME2

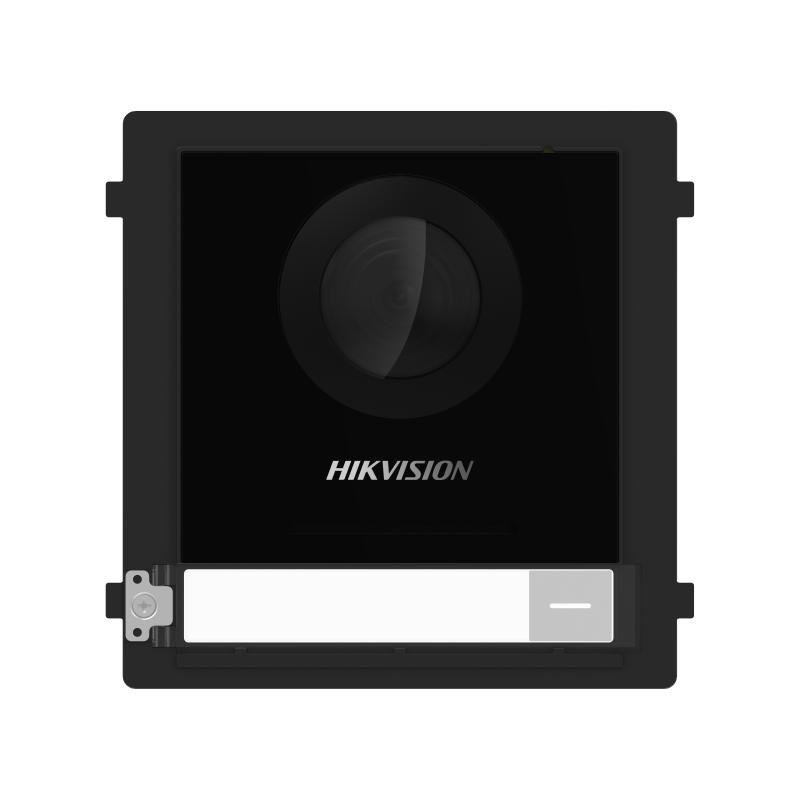

2-Wire main camera module for modular door stations, with a 2MP fisheye camera, IR supplement, single call button, two-lock control and IP65 rating.
The DS-KD8003Y-IME2 is the 2-Wire equivalent of the KD8 main module — the same modular door station, carried over two-core cable instead of Ethernet.
It takes the same keypad, display, nametag and blank modules as the IP version and mounts in the same brackets and rain shields, so a 2-Wire retrofit is designed exactly like a new IP installation.
The 2MP fisheye camera covers 146° horizontally and 82° vertically with WDR and IR supplement to 3m, keeping a caller in frame and visible at night regardless of where they stand.
Two-lock control drives a door and a gate, with 12V 500mA output powering an electronic lock directly and no separate lock supply required.
Capacity is 2,000 users, 500 linked indoor stations and 16 sub door stations, over TCP/IP, RTSP, IPv6 and ONVIF. IP65 rated with remote web configuration.
| Operation system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embedded Processor |
| Lens | 1 |
|---|---|
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
|---|---|
| Face capacity | NA |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP, IPV6, ONVIF |
|---|
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
|---|---|
| Network interface | NA |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| USB | NA |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 relays, Max. to 30 VDC, 2 A |
| Door contact input | 2 |
| Two-Wire IP interface | 1 |
| Button | 1 |
|---|---|
| Installation | Surface mounting, flush mounting |
| Protective level | IP65 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Outdoor |
| Power consumption | ≤ 4 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
