SKU: DS-KIS703Y-P

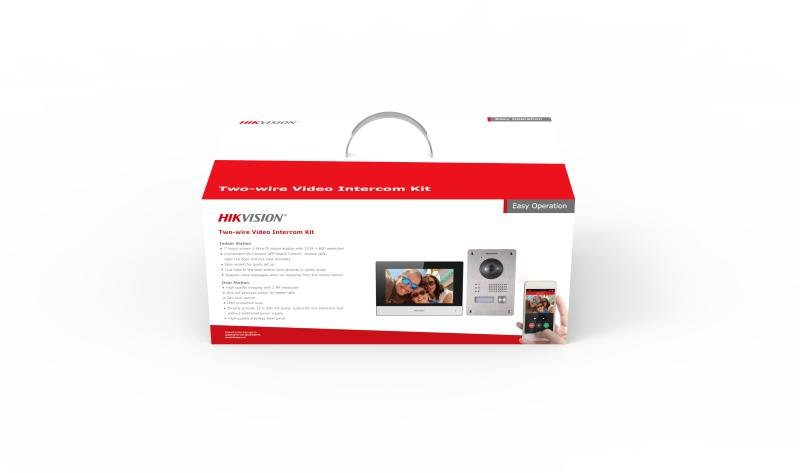

Complete one-to-one 2-Wire intercom kit with a 7-inch touch screen indoor station, 2MP surface-mount door station and power supply. Runs over two-core cable.
The DS-KIS703Y-P is a complete one-to-one intercom in a single box — indoor station, door station and power supply — so a house or single tenancy needs nothing else specified.
Running over two-core cable is the point: an existing analogue intercom's wiring can be reused, which turns a rewire into a swap. That is usually the difference between a job going ahead and being deferred.
The door station carries a 2MP camera with 140° x 85° coverage, WDR and IR to 3m, a single call button, IP65 rating and two-lock control with 12V 500mA output to drive an electric lock directly.
The 7-inch 1024 x 600 touch screen indoor station handles calls, door release and live view, with Hik-Connect app control for answering and unlocking remotely, a setup wizard for commissioning, and voice messages when nobody answers.
Supplied for surface mounting with the power supply included.
| Operation system | Embedded Linux operation system |
|---|---|
| Operation mode | Single-button |
| Flash | 32 MB |
| RAM | 256 MB |
| Camera | 2MP HD camera |
|---|---|
| Resolution | Main stream: 1280*720P, 1920*1080p |
| Night vision | Low illumination IR supplement distance: 3 m |
| WDR | Support |
| Field of view | Horizontal: 140° Vertical: 85° |
| Video Compression Standard | H.264 |
| Audio input | Built-in 1*omnidirectional microphone |
|---|---|
| Audio output | Built-in 1*loudspeaker, 8Ω |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Network protocol | TCP/IP, RSTP, SIP2.0 |
|---|---|
| Wired network | Support, 2-Wire wiring |
| Alarm input | 2( Exit button or door contact) |
|---|---|
| Output | 1*12 V/500 mA output |
| Two-wire interface | 1 |
| TAMPER switch | 1 |
| Power consumption | ＜ 10 W |
|---|---|
| Working temperature | -40° C to +60° C(-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Installation | Surface mounting, flush mounting |
| Protection level | IP65 |
| Indicator | 3 |
| Power supply | From indoor station |
| Operation system | Embedded Linux operation system |
|---|---|
| Memory | 128 MB |
| Flash | 32 MB |
| Display screen | 7-inch TFT touch screen |
|---|---|
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Brightness | Adjustable |
| Audio input | Built-in 1*omnidirectional microphone |
|---|---|
| Audio output | Built-in 1*loudspeaker, 8Ω |
| Audio quality | Noise suppression and echo cancellation |
| Volume | Local adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Wired network | 1*10 Mbps through 2-wire interface |
|---|---|
| Wireless network | Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz |
| RS-485 | 1 |
|---|---|
| Alarm input | Reserved |
| Two-wire (output) | 1 |
| Two-wire (input) | 1 |
| Power input | 24VDC/1.5A |
| Power supply | 24VDC/1.5A |
|---|---|
| Power consumption | ≤ 8 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
