SKU: DS-K7IR01

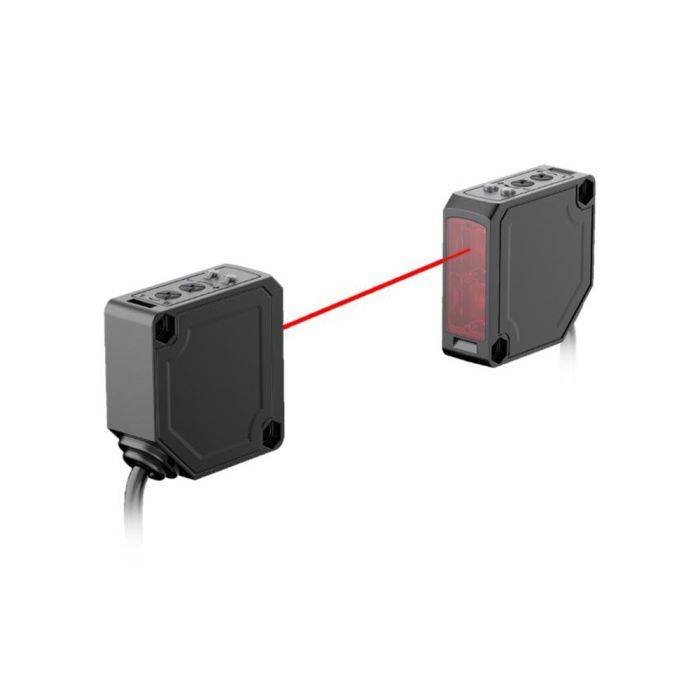

The Hikvision DS-K7IR01 is an infrared beam detector designed to provide reliable perimeter and entrance protection. It supports NO/NC signal output and features an easy alignment system with a built-in light indicator. With a maximum transmission distance of 30 metres, it is suitable for entrance gates, intrusion alarms and other security applications.
| Model | DS-K7IR01 |
|---|---|
| Lane width | Max 30m |
| Working temperature | -25 °C to 55 °C (-13 °F to 131 °F) |
| Working humidity | 10% to 95% (No condensing) |
| Protective level | IP65 (proved by Hikvision lab) |
| Power supply | 12-24VDC |
| Interconnecting cable | 2M length |
| Dimensions | Details |
| Without package | 50 mm × 50 mm × 18 mm (1.97" × 1.97" × 0.71") |
| With package | 175 mm × 155 mm × 78 mm (6.89" × 6.10" × 3.07") |
| Installation | mounting on plates |
| Weight | Details |
| Net | 0.33 kg (0.73 lb) |
| Gross | 0.42 kg (0.93 lb) |
| Approval | CE/RoHS |
