SKU: DS-KH6110-WE1

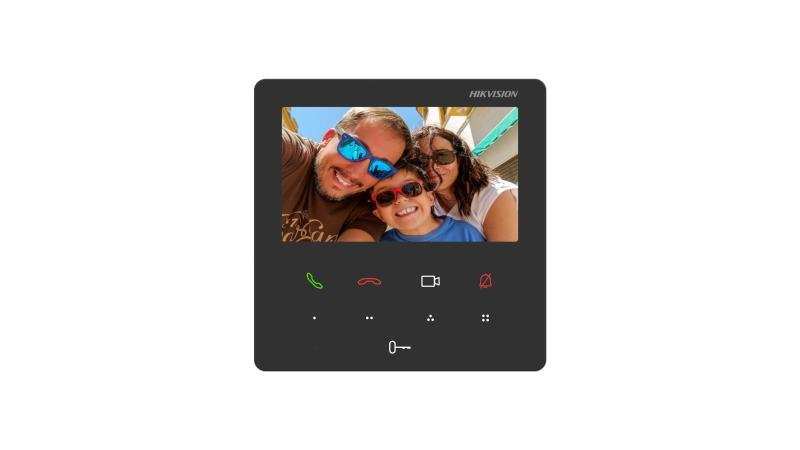

Compact indoor station with a 4.3-inch colour touch screen, Wi-Fi and standard PoE, four customisable touch buttons and Hik-Connect app control.
The DS-KH6110-WE1 is the entry point of Hikvision's IP indoor station range, sized for apartments and homes where a 7-inch panel would dominate the wall.
Standard PoE means no separate power adaptor and no socket needed behind the station — one cable does power and network, which simplifies both new wiring and retrofits.
Four custom touch buttons let each household map the functions it actually uses, rather than navigating menus for a routine action like unlocking the door or calling the gate.
Hik-Connect app control extends the station to a phone for answering calls, opening the door and viewing live video away from home. Live view covers door stations and linked cameras.
The 4.3-inch capacitive colour TFT runs 480 x 272 with nine touch buttons. Capacity is 200 events, 200 notices and 16 linked indoor extensions, with four alarm inputs, 2.4GHz Wi-Fi and wall or table mounting.
| Operating system | Linux |
|---|---|
| ROM | 16 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Screen size | 4.3-inch |
|---|---|
| Operation method | Capacitive touch screen with 9 touch buttons |
| Type | Colorful TFT |
| Resolution | 480 × 272 |
| Audio compression standard | G.711 U, G.711 A |
|---|---|
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Event capacity | 200 |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Communication protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi standard | Wi-Fi 802.11 b/g/n, 2.4 GHz |
| Alarm input | 4 |
|---|---|
| Network interface | 1 RJ-45 100 Mbps |
| Button | 9 touch buttons |
|---|---|
| Installation | Wall mounting, table mounting |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83") |
| Application environment | Indoor |
| Power consumption | ≤ 4 W |
| Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek |
| Power supply | IEEE802.3af, Standard PoE,12 VDC |
