SKU: DS-KAD706Y-P

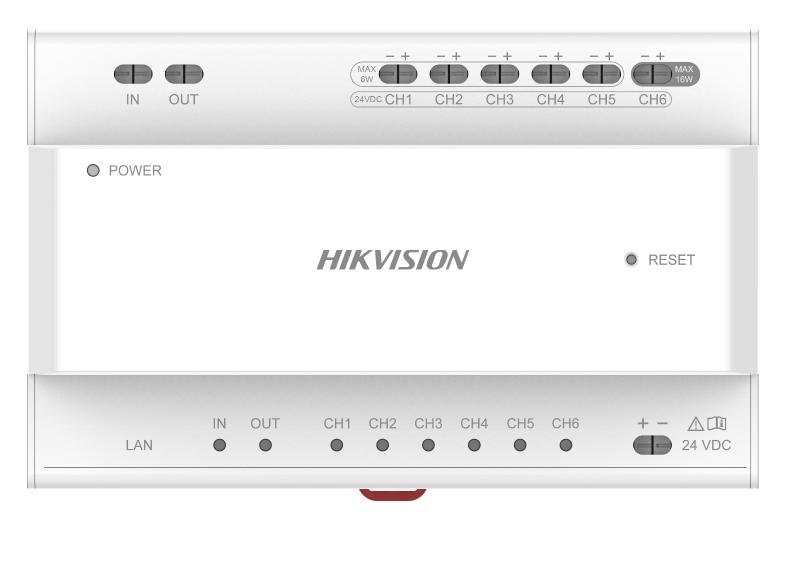

DIN rail 2-Wire distributor with six device ports supplying power, two cascade ports for expansion, an RJ-45 interface and eight status indicators. 24V DC input.
The DS-KAD706Y-P is the hub of a 2-Wire intercom installation, feeding six devices with both signal and power over their two-core runs.
Supplying power down the same pair is what keeps a 2-Wire retrofit simple — no local supply needed at each indoor station, and no second cable pulled to a device that already has one.
Two cascade interfaces chain further distributors (DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series), so a building scales by adding units rather than replacing the first one.
Eight interface indicators give a per-port status read at the DIN rail, which turns fault-finding into a glance rather than a continuity test on every run.
Power is 24V DC with consumption under 6W on channels 1-5 and under 16W on channel 6. An RJ-45 interface and a reset button are provided, rated -10°C to 55°C.
| Network interface | 1 RJ45 |
|---|---|
| Two-wire interface | 8(2 for casacading, 6 for devices) |
| Signal indicator | 8 |
| Power indicator | 1 |
| Reset | 1 |
| Power supply | 24 VDC |
|---|---|
| Power consumption | CH1 to CH5＜6 W, CH6＜16 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
