SKU: DS-KH9310-WTE1

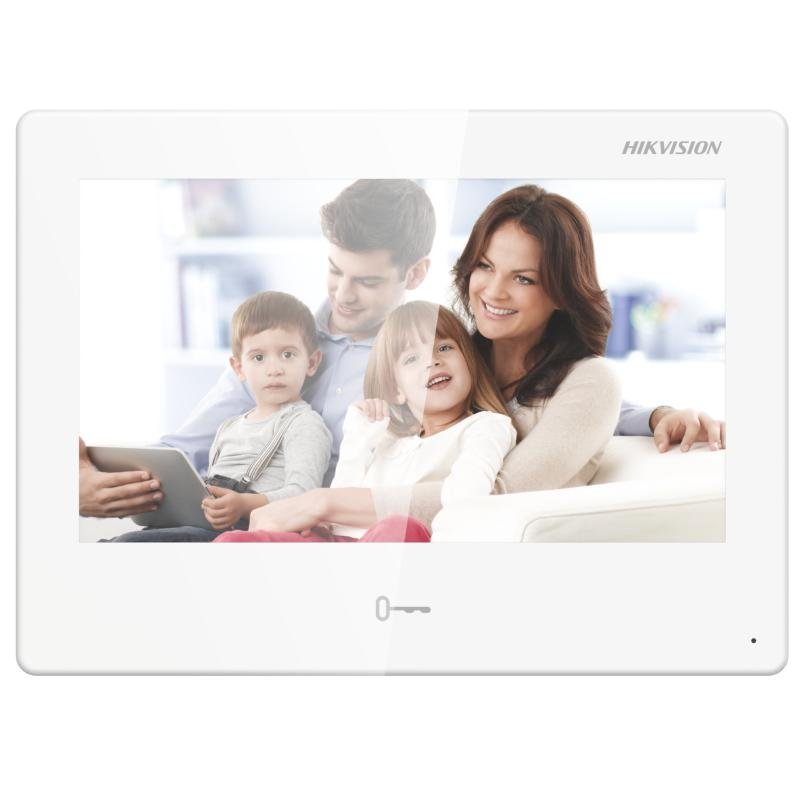

Android 10 indoor station with a 7-inch 1024 x 600 touch screen, 2GB RAM and 8GB storage, supporting third-party app installation alongside built-in Hik-Connect.
The DS-KH9310-WTE1 runs full Android 10 rather than the embedded Linux of the other stations, which changes what it is: a tablet on the wall that happens to be an intercom.
Third-party Android apps can be installed, and third-party software integration is supported — so a building management system, a booking app or a concierge tool can live on the same panel as the door intercom.
That matters for apartment developments and serviced buildings that want one screen in the entry rather than an intercom beside a tablet beside a light switch.
Hik-Connect is built in for all-in-one management of Hikvision devices from the panel itself.
The 7-inch capacitive TFT runs 1024 x 600 with 2GB RAM and 8GB storage, H.265 and H.264 video, 2.4GHz Wi-Fi, 16 linked indoor extensions, 17 linked doorphones and 16 linked cameras. Micro SD storage is supported. Finished in white.
| Operation system | Android 10.1 |
|---|---|
| ROM | 8 GB |
| RAM | 2 GB |
| Processor | Embeded high performance processor |
| Screen size | 7-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video compression standard | H.265；H.264 |
|---|
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | 200 captured pictures, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked network camera capacity | 16 |
| Linked doorphone capacity | 17 |
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 1 |
| Lock control | 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V) |
| Installation | Surface mounting |
|---|---|
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01") |
| Power supply | 12 VDC, 1 A, IEEE802.3af, standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 12 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
