SKU: DS-KH6350-WTE1

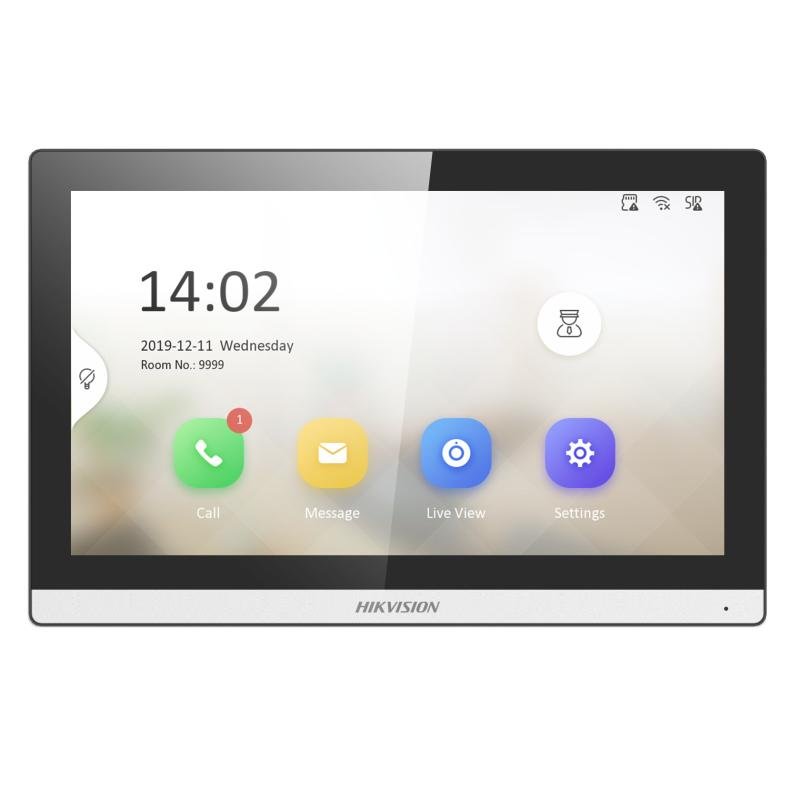

G2 indoor station in black with a 7-inch 1024 x 600 touch screen, H.265 video, Wi-Fi and Hik-Connect app control, plus alarm linkage and elevator access control.
The DS-KH6350-WTE1 is the G2 generation of Hikvision's 7-inch indoor station, and the practical upgrade over the KH6320 is H.265 video support.
H.265 roughly halves the bandwidth of an equivalent H.264 stream, which matters when several apartments pull live video from door stations and cameras across a shared building network at the same time.
Audio adds Opus, AAC-LD, AAC-LC and G.726 alongside the G.711 codecs, giving better voice quality on calls routed through SIP systems.
The rest follows the range: whole-system configuration from the screen with a setup wizard, live view of door stations and public-area cameras, voice messages when unanswered, alarm linkage to a monitoring centre, and elevator access control.
The 7-inch capacitive TFT runs 1024 x 600, with 16 linked indoor extensions and 17 linked doorphones. Finished in black.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Screen size | 7-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video compression standard | H.265；H.264 |
|---|
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 |
| Lock control | 2 relays, Max. 30 VDC 0.3 A |
| Installation | Wall mounting, table mounting |
|---|---|
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Power supply | 12 VDC, 1 A,IEEE802.3af, Standard PoE |
