SKU: DS-KH6350-WTE1-WHITE

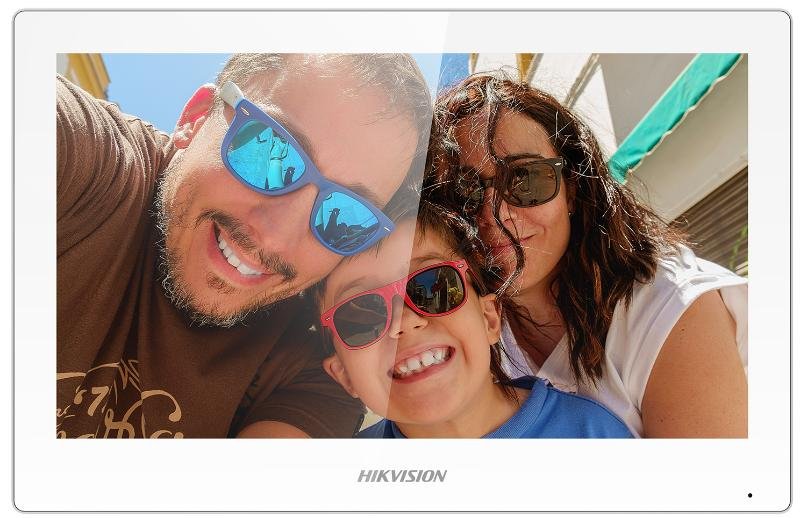

White finish G2 indoor station with a 7-inch 1024 x 600 touch screen, H.265 video, Wi-Fi, Hik-Connect app control, alarm linkage and elevator access control.
The white G2 indoor station carries the same electronics as the black model — the choice is purely how it reads against the wall it is mounted on.
H.265 video support is the substantive difference from the earlier KH6320 generation, roughly halving stream bandwidth when multiple apartments view door stations and cameras simultaneously.
Audio covers Opus, AAC-LD, AAC-LC, G.726 and G.722.1 alongside G.711, improving call quality over SIP.
The station configures the whole intercom system from its own screen with a setup wizard — no PC required — and handles live view of door stations and public-area cameras, voice messages when unanswered, alarm linkage and elevator access control.
The 7-inch capacitive TFT runs 1024 x 600, with 200 pictures and 200 alarm records on a TF card, 16 linked indoor extensions and 17 linked doorphones.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Screen size | 7-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video compression standard | H.265；H.264 |
|---|
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 |
| Lock control | 2 relays, Max. 30 VDC 0.3 A |
| Installation | Wall mounting, table mounting |
|---|---|
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Power supply | 12 VDC, 1 A,IEEE802.3af, Standard PoE |
