SKU: DS-KH6320-WTE1

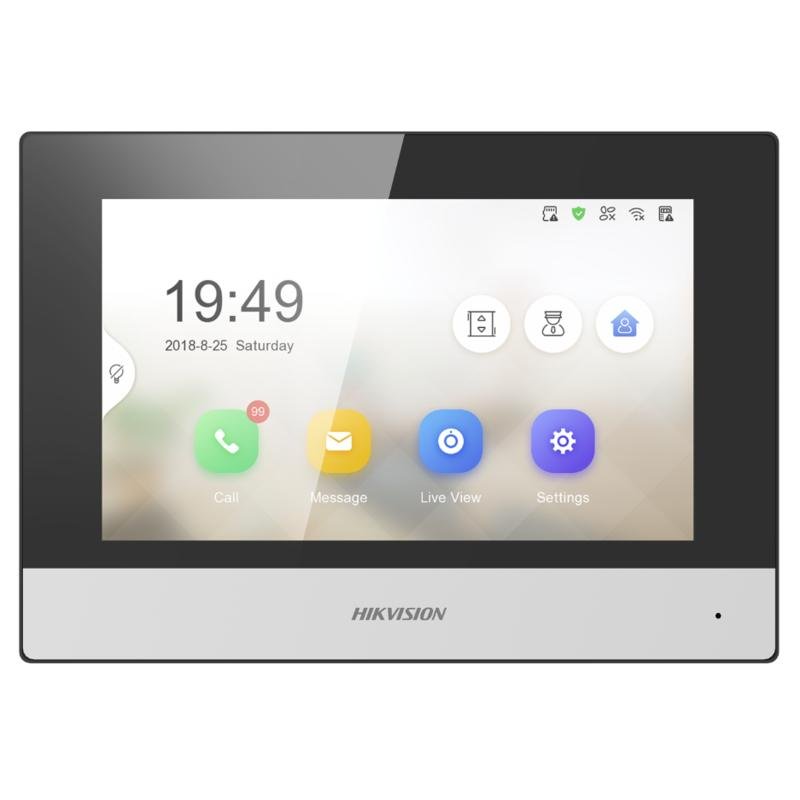

Pro Series indoor station with a 7-inch 1024 x 600 touch screen, Wi-Fi, Hik-Connect app control, alarm system linkage and elevator access control.
The DS-KH6320-WTE1 is the mainstream 7-inch indoor station, and the one most apartment and villa installations standardise on.
The whole system is configured from this screen rather than from a PC, with a setup wizard for commissioning — which means a small installation needs no laptop, no software licence and no return visit to adjust settings.
Live view covers the door station and cameras in public areas, so a resident can check the lobby or car park before going down. Voice messages are recorded when nobody answers the indoor station, and alarm linkage passes events to a monitoring centre.
Elevator access control ties the intercom to lift calling — the feature that makes this station viable in multi-storey buildings rather than just houses.
The 7-inch capacitive TFT runs 1024 x 600. Capacity is 200 pictures and 200 alarm records with a TF card, 16 linked indoor extensions, 17 linked doorphones and 16 linked cameras, over TCP/IP, SIP and RTSP.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Screen size | 7-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inser ted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Linked network camera capacity | 16 |
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 relays, Max. 30 VDC 0.3 A |
| Installation | Surface mounting |
|---|---|
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
