SKU: DS-KD-DIS

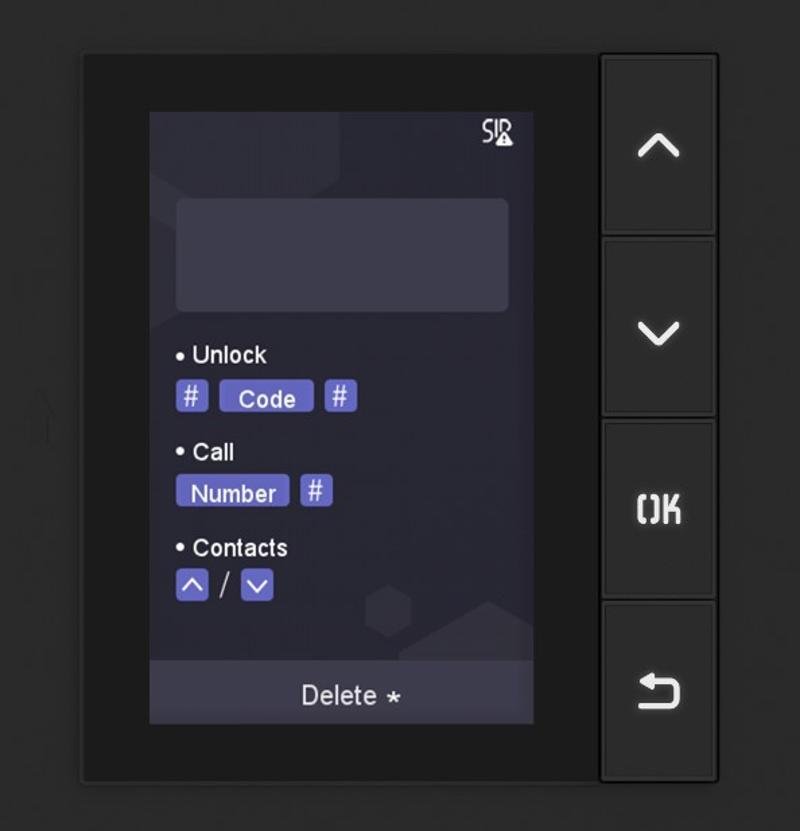

3.5-inch LCD display module for the KD8 modular door station, showing a searchable contact list of up to 2,000 entries with dial-number and PIN unlock. IP65 rated.
The DS-KD-DIS gives a door station a screen, replacing the fixed nametag strip with a contact list that can hold 2,000 entries and be edited from the system rather than reprinted.
For any building with turnover — apartments, serviced offices, student accommodation — that is the difference between updating a name in software and sending someone out with a label kit.
The 3.5-inch 320 x 480 TFT screen runs at 250 cd/m² with four physical buttons (up, down, OK, back) rather than a touch panel, which stays reliable in rain and with gloved hands. Multiple languages are supported.
Visitors can dial a number directly or enter a PIN to unlock. The module is IP65 rated with backlight compensation, measures 98.5 x 100 x 34.2mm, draws 2.5W, and flush or surface mounts beside the main module.
| Operating system | Embedded Linux operation system |
|---|---|
| ROM | 8 MB |
| RAM | 64 MB |
| CPU | Embedded MCU Processor |
| Screen size | 3.5-inch |
|---|---|
| Operation method | Physical buttons |
| Type | TFT LCD screen |
| Resolution | 320 × 480p |
| Brightness | 250 cd/m2 |
| RS-485 | 1 |
|---|---|
| Power interface | 1 |
| Button | 4( Up, Down, OK, Back) |
|---|---|
| Installation | Flush mounting, surface mounting |
| Protective level | IP65 |
| Working temperature | 20° C to +60° C(-4° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimensions | 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33") |
| Application environment | Outdoor |
| Power consumption | 2.5 W |
