SKU: DS-KD-KP

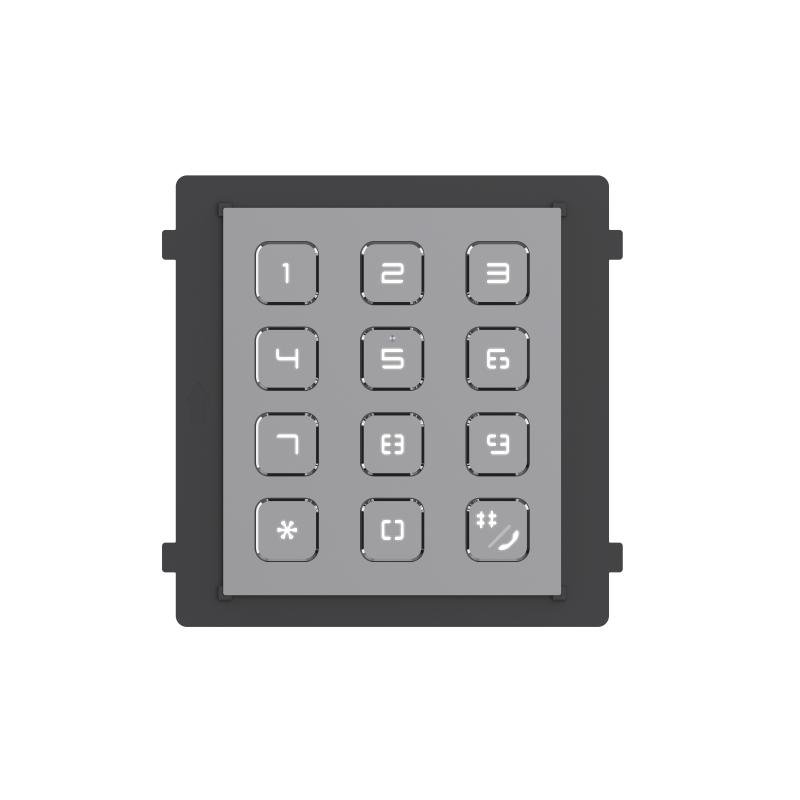

12-button keypad module for the KD8 modular door station, allowing PIN entry to open the door or dial an indoor station. IP65 and IK07 rated with backlit buttons.
The DS-KD-KP adds PIN entry to a KD8 door station, so residents and staff can open the door without a card, fob or phone — the fallback that stops a forgotten credential becoming a call to the building manager.
The same keypad dials indoor stations directly, which suits apartment buildings where visitors enter an apartment number rather than hunting through a nametag list.
IK07 impact rating sits above the IP65 weather rating and is the specification that matters on a public entrance: the keypad is the part of a door station people press hard, hit with keys, and occasionally attack.
Backlight compensation behind the buttons keeps the digits readable at night. The module measures 98.5 x 100 x 34.2mm, flush or surface mounts alongside the main module, draws 1W, and operates from -40°C to 55°C.
| Operation system | Linux |
|---|---|
| Processor | Embedded high performance processor |
| RS-485 | 1 |
|---|
| Button | 12 |
|---|---|
| Installation | Flush mounting, surface mounting |
| Weight | Net weight: 265 g Gross weight: 529 g |
| Protective level | IP65, IK7 |
| Working temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working humidity | 10% to 95% |
| Dimension (W × H × D) | 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33") |
| Application environment | Outdoor |
| Power consumption | 1 W |
