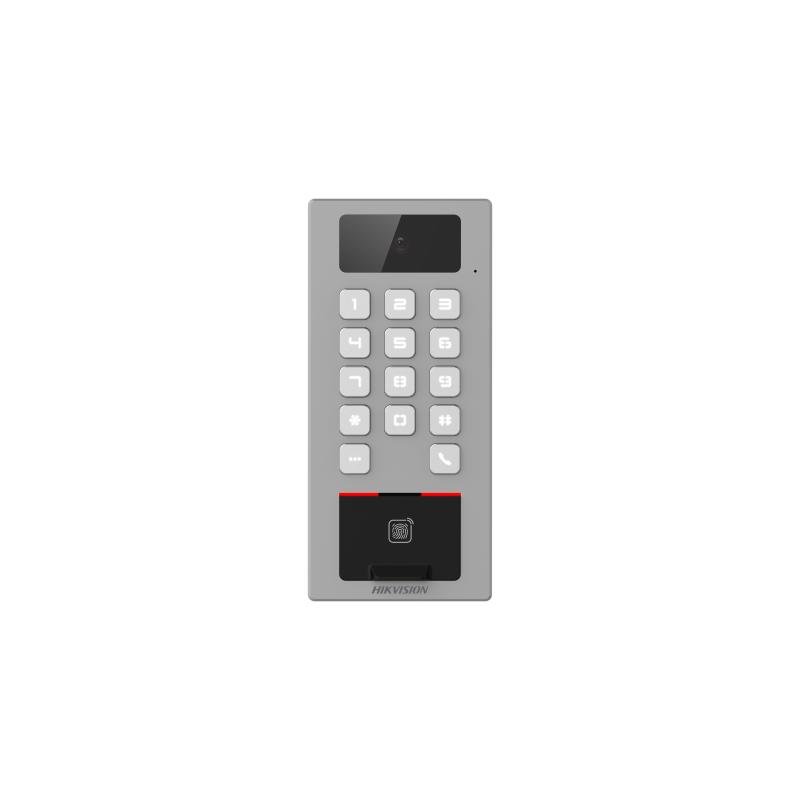

Hikvision Pro Fingerprint Access Terminal with Intercom – DS-K1T502DBFWX-CE1

Name: Hikvision Pro Fingerprint Access Terminal with Intercom – DS-K1T502DBFWX-CE1
Brand: Hikvision
SKU: DS-K1T502DBFWX-CE1

SKU: DS-K1T502DBFWX-CE1

Zinc alloy access terminal combining fingerprint, card, PIN and QR code authentication with SIP intercom, Wiegand output, 802.3at PoE and IP65 / IK09 protection.

🔒

Trade Account Required
Log in to see trade pricing and add to cart.

IP65 IK09 Zinc Alloy

FP Card PIN QR Auth

SIP Intercom

802.3at PoE

The DS-K1T502DBFWX-CE1 does the job of two devices: an access control terminal and a door intercom in one housing, which halves the hardware on an entrance that needs both.

Authentication covers capacitive fingerprint, M1 and DESFire cards, PIN, QR code and Bluetooth from a phone — so a site can issue whichever credential suits each user group without adding readers.

Zinc alloy construction with IP65 and IK09 ratings is built for an outdoor, public-facing entrance where a plastic terminal would be vandalised or weather-damaged.

Intercom runs over standard SIP against Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX and PBXware, so the terminal joins an existing phone system rather than requiring Hikvision indoor stations. The call button reaches a management centre, an indoor station or a phone.

A Wiegand interface connects it to an existing access controller (Hik 26-bit and 34-bit), and RS-485 handles an external card reader or elevator calling. A 2MP camera covers 110° horizontally. Power is 802.3at PoE or 12-24V DC at 24W or less, rated -40°C to 65°C.

Manage access control and intercom functions in one device
IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, PIN, QR code, etc.)
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Supports communication with smart phones via bluetooth to open the door
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports PIN settings under platform mode and local mode
Setting the priority of wired network and wireless network is available
Individual QR code peripheral, which helps device supporting dynamic QR code authentication
Supports PoE power supply, and the device can directly supply power to the door lock, with a lock output power of 12V, 1A
Supports dual relays, allowing control of two doors via Indoor Station, Web operation, etc.

Video

Lens	1
Resolution	2 MP
FOV	HFOV = 110°; VFOV = 81°; DFOV = 122°

Network

Wired network	Support
Wi-Fi	Support, 2.4 G, 802.11b/g/n

Interface

Network interface	1 RJ-45 10/100 Mbps self-adaptive
Lock control	2
Exit button	1
Door contact input	1
Alarm input	2
Alarm output	1
TAMPER	1
RS-485	1,RS-485 (Half duplex,HIKVISION）
Wiegand	1, Wiegand (Hik 26bit,Hik 34bit)
SD card slot	1

Authentication

Fingerprint module	Capacitive fingerprint recognition
Card type	M1 card;DESfire card

General

Built-in access controller	Support
Power supply	802.3at POE,12 VDC to 24 VDC, 1 A
Power consumption	≤ 24 W
Working temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Language	Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish

Function

Hik-Connect	Support
Video intercom	Support
