SKU: DS-PDCM15PF-IR

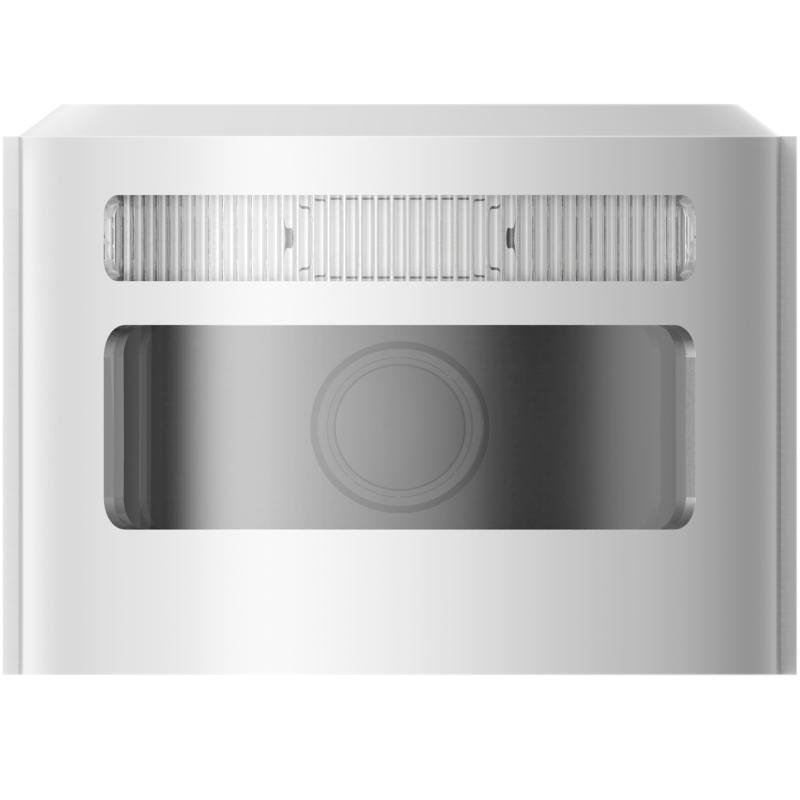

The DS-PDCM15PF-IR is an RF Camera Module from Hikvision's AX PRO wireless alarm range. It provides 1 12-Bit Data Interface and a 3 VDC supply. Features include 1/2.7" Progressive Scan CMOS and 2.0 mm fixed lens. Measures 74.1mm × 72.35mm × 53mm and operates from -25 °C to 60 °C (-13 °F to 140 °F).
| Detection Method | Video Verification |
|---|
| Digital Noise Reduction | 3D |
|---|---|
| Focal length | 2.0mm@F2.25 |
| Field Angle | 137.2°(H), 80.1°(V) |
|---|---|
| Image Type | JPEG |
| Resolusion | 640*480;320*240;160*120 |
| Fill Light | Infrared Light |
| Fill Range | 15m |
| Day/Night Switch | Auto |
| Communication Interface | 1 12-Bit Data Interface |
|---|
| Power Supply | 3 VDC |
|---|---|
| Power Consumption | 1200mA |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
|---|---|
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP66 |
| Dimension(WxHxD) | 74.1mm x 72.35mm x 53mm |
