SKU: DS-PM1-I1-WB

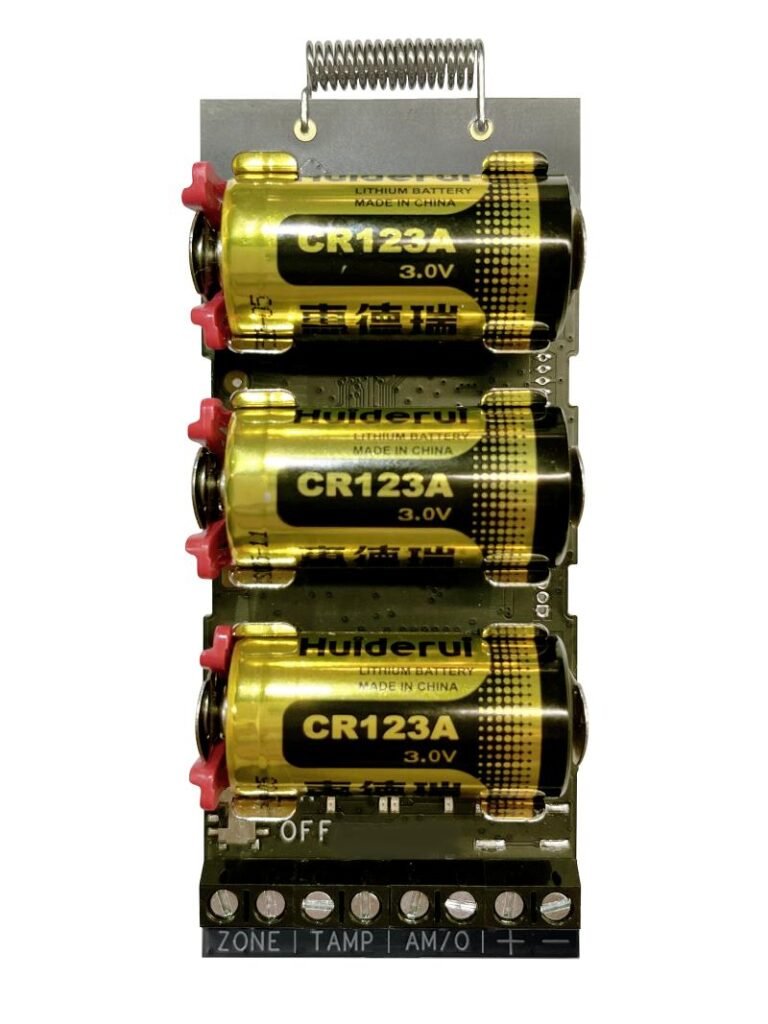

The DS-PM1-I1-WB is a single Input Transmitter from Hikvision's AX PRO wireless alarm range. It provides up to 5 years (standby time) battery life. Features include small size design, which can be put into wired detector easily and 433MHz two-way wireless communication. Measures 102 × 41 × 20mm and operates from –10℃ ~ 55℃.
| Serial port | 1 |
|---|---|
| Power switch | 1 |
| Alarm input | 1 Alarm, 1 Tamper |
| Alarm output | 1 PGM, AM/Output |
| 3.3v Output | 1, up to 10mA |
| Indicator | 3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red） |
|---|
| Power supply | 3 CR123 |
|---|---|
| Operation humidity | 10%~90% |
| Operation temperature | –10℃ ~ 55℃ |
| Power consumption | Quiescent current: 40.29 uA Max current: 47.85mA Voltage: 3 VDC |
| Battery life span | Up to 5 years (standby time) |
| RF frequency | 433MHz |
|---|---|
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 1300m |
| Installation method | Put inside Wireless Ready Detector |
|---|---|
| Dimension(WxHxD) | 102*41*20mm |
