SKU: DS-KD-ACW1

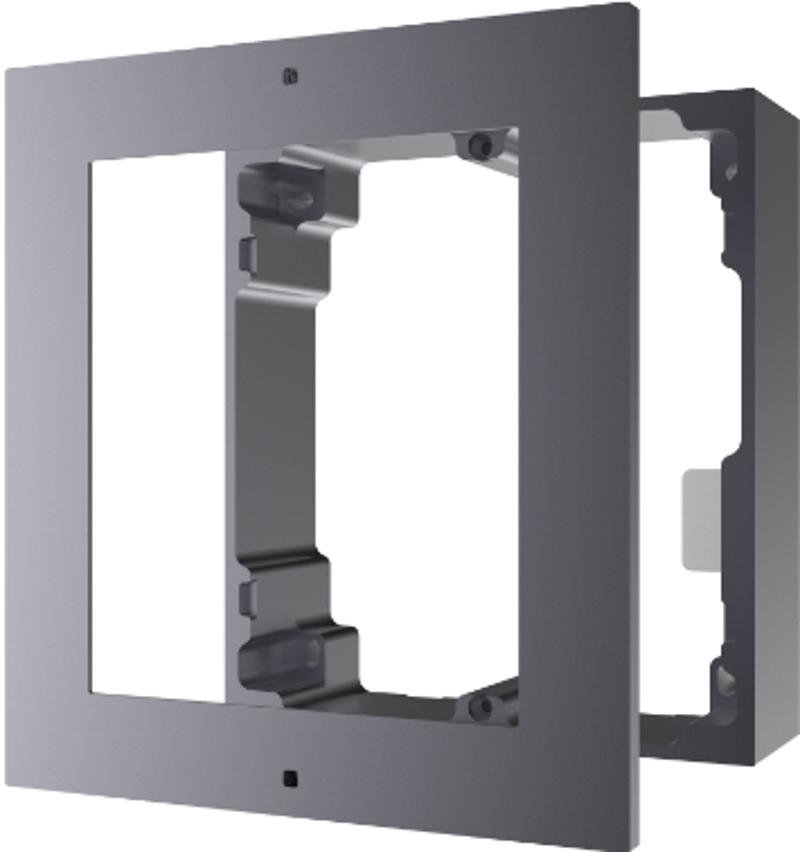

Aviation aluminium surface mounting bracket for one KD8 door station module, including module frame, front panel and fixings. No wall cavity required.
The DS-KD-ACW1 fixes a single-module door station to the face of a wall, which is the practical choice on solid brick, concrete and heritage frontages where cutting a flush aperture is expensive or not permitted.
The kit includes the module frame, front panel and the necessary accessories, so nothing else needs ordering to complete the installation.
Aviation aluminium construction keeps the bracket light at 220g while resisting the corrosion that affects steel brackets at exposed entrances.
The cover measures 117 x 107 x 4mm with the installation frame at 117 x 107 x 32.7mm, rated -40°C to 55°C at 10% to 95% humidity. Pair it with a rain shield where the entrance has no overhead cover.
| 381 g (with packaging) | |
| Working temperature | -40° C to +55° C(-40° F to 131° F) |
| Working humidity | 10% to 95% |
| Dimensions | Cover:117 × 107 × 4 mm(4.61" × 4.21" ×0.16") |
| Material | Aviation Aluminum |
