SKU: DS-KD8003-IME1-S

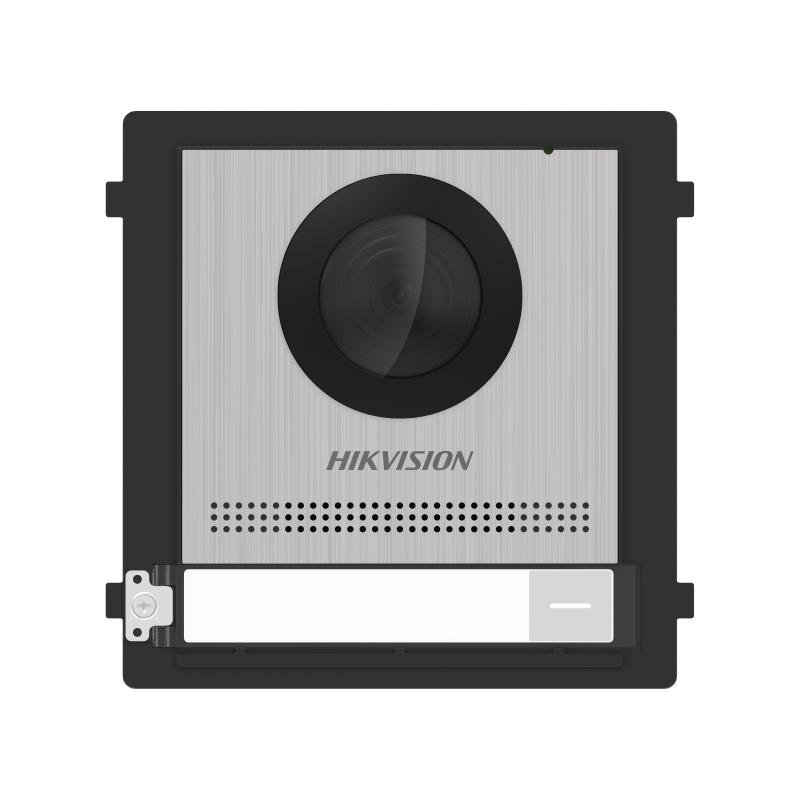

Stainless steel version of the KD8 main door station module, with a 2MP fisheye camera, IR supplement, two-lock control and PoE, rated IP65 for exposed entrances.
The stainless steel DS-KD8003-IME1/S is specified where the standard aluminium module will not survive or will not suit: coastal sites with salt exposure, high-traffic public entrances, and buildings where the entrance hardware is part of the architecture.
Electronically it is the same module as the standard version — 2MP fisheye camera with 146° x 82° coverage, IR supplement lighting, WDR, single call button and two-lock control with 12V 500mA lock output.
Capacity covers 2,000 users, 6,000 cards, 500 linked indoor stations and 16 sub door stations, with ONVIF and IPv6 alongside TCP/IP and RTSP.
Standard PoE carries power and data on one cable, and the IP65 housing is configured remotely over the web. Pair it with the matching stainless keypad module and stainless brackets for a consistent frontage.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Lens | 2 MP HD camera |
|---|---|
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | Low illumination, IR supplement lights |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
|---|---|
| Card capacity | 6000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP, IPV6, ONVIF |
|---|---|
| 3G/4G | NA |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
|---|---|
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Lock control | 2 relays, Max. 30 VDC, 2 A |
| Door contact input | 2 |
| Button | 1 |
|---|---|
| Installation | Surface mounting, flush mounting |
| Weight | Net weight: 410 g Gross weight: 581 g |
| Protective level | IP65 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Power supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
