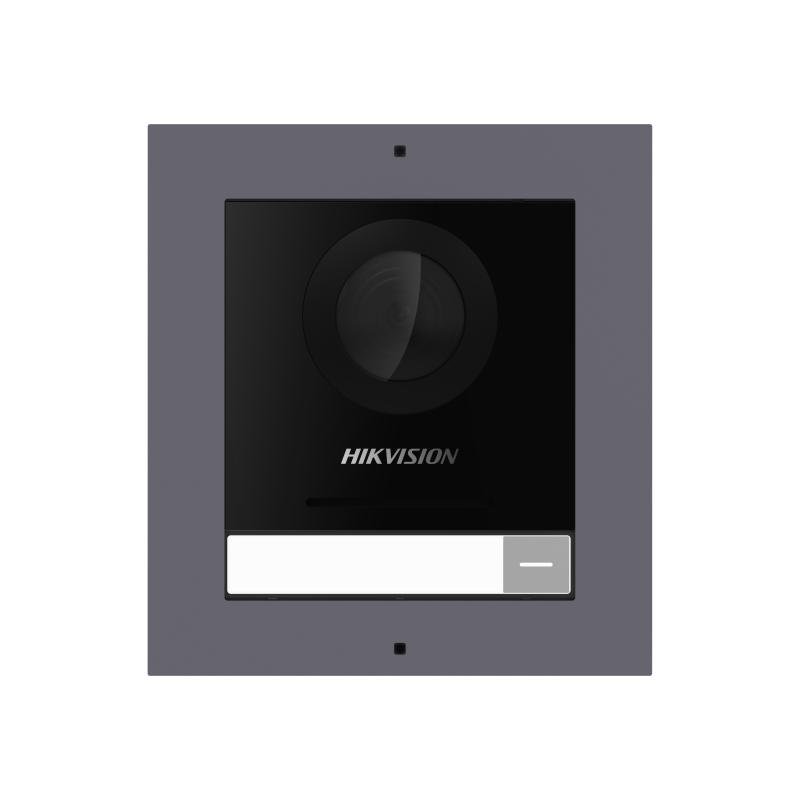

SKU: DS-KD8003-IME1-B-SURFACE
Surface-mount version of the KD8 main door station module, supplied with its surface box. 2MP fisheye camera, two-lock control, PoE and IP65 rating, with no wall cavity required.
The surface-mount variant of the KD8 main module ships with its mounting box, so the station fastens to the face of a wall rather than needing a cavity cut into it.
That matters on solid brick, concrete, stone and heritage frontages where flush mounting means core drilling — and on jobs where the entrance is being retrofitted rather than built.
Functionally it matches the flush module: a 2MP fisheye camera with 146° x 82° coverage, IR supplement lighting, WDR, a single call button, and two-lock control with 12V 500mA output to drive an electronic lock directly.
Standard PoE carries power and network on one cable. Capacity is 2,000 users, 6,000 cards, 500 linked indoor stations and 16 sub door stations, in an IP65-rated housing configured remotely over the web.
| Operating System | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Supplement Light | Low illumination, IR supplement lights |
|---|---|
| Video Standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio Input | Built-in omnidirectional microphone |
|---|---|
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| User Capacity | 2000 |
|---|---|
| Card Capacity | 6000 |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Communication Protocol | TCP/IP, RTSP |
|---|---|
| Wired Network | 10/100 Mbps self-adaptive Ethernet |
| Alarm Input | 4 (2 exit butttons and 2 door contacts by default) |
|---|---|
| Network Interface | 1 RJ45 |
| TAMPER | 1 |
| Exit Button | 2 (2 for lock control) |
| Door Contact Input | 2 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Lock Control | 2 (2 relay, max to 30 V, 2 A) |
| Power Interface | 12 VDC power output (max to 12 V, 500 mA) |
| Power Supply | 12 VDC/PoE ( IEEE 802.3af) |
|---|---|
| Working Temperature | -40° C to 60° C (-40° F to 140° F) |
| Working Humidity | 10% to 95% |
| Button | 1 |
| Protective Level | IP65 |
| Installation | Surface mounting |
| Dimensions(L x W x H) | Device: 98 x 100 x 42 mm; Cover: 117 x 107 x 4 mm; Installation Frame: 117 x 107 x 32.7 mm |
| Language | English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak |
| Indicator | 0 |
| Application Environment | Outdoor |
| Power Consumption | ≤ 5 W |
