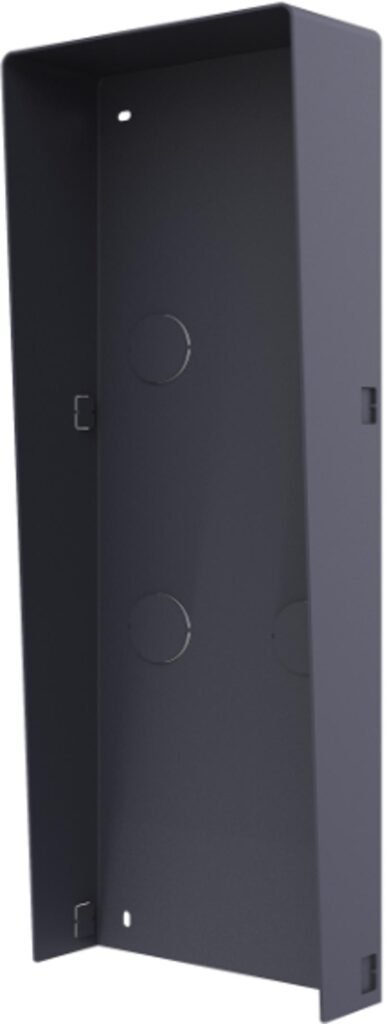

SKU: DS-KABD8003-RS3
SECC steel rain shield for a three-module surface-mounted door station, 325.8mm wide. Surface mount only, fitting DS-KD8003-IME1 and IME2 stations.
The DS-KABD8003-RS3 is the widest rain shield in the range at 325.8mm, covering a three-module surface-mounted door station.
It is surface mount only — there is no flush equivalent, because a recessed station sits behind the wall face and does not need one.
SECC electro-galvanised steel stands up to permanent outdoor exposure. Installation follows the same pattern as the smaller shields: levelling sticker as a drilling template, four expansion bolts, module connecting cables threaded through the frame, then the cover fixed with the supplied hex wrench.
It measures 325.8 x 116.4 x 58mm at 702.3g, rated -40°C to 60°C at 10% to 95% humidity. Compatible with DS-KD8003-IME1 and DS-KD8003-IME2 stations.
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
|---|---|
| Working humidity | 10% to 95% |
| 702.3g | |
| Dimension (W × H × D) | 325.8x 116.4×58 mm (12.83" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. |
| Material | SECC |
