SKU: DS-KD-ACF3-PLASTIC

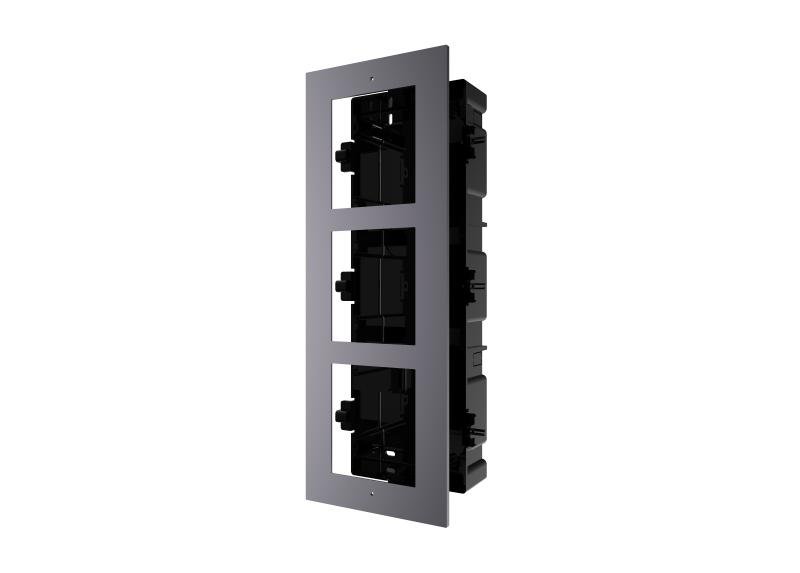

Flush mounting bracket for three KD8 door station modules, supplied with plastic gang box, aluminium cover, screws and cabling.
The DS-KD-ACF3/Plastic is the three-position flush bracket, for stations combining the main camera module with two others — commonly a keypad and a display, or a keypad and a nametag module.
It is the widest flush bracket in the range at 337.8mm, which makes wall selection a real consideration: the aperture needs a clear run of masonry with no stud, pipe or cable in the way.
The kit includes the plastic gang box, aluminium cover, screws and cabling. Blank modules fill any position not yet in use, keeping the station sealed to IP65.
The cover measures 337.8 x 124 x 11.5mm over a 320.8 x 107 x 45mm gang box, weighs 420g, and is rated -40°C to 55°C.
| Net weight: 420 g | |
| Working temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working humidity | 10% to 95% |
| Dimension (W × H × D) | Cover: 337.8 mm × 124 mm × 11.5 mm (13.3" × 4.88" ×0.45") Gang Box: 320.8 mm × 107 mm × 45 mm (12.63" × 4.21"× 1.77") |
| Material | Cover: Aluminum |
