SKU: DS-KD-ACW3

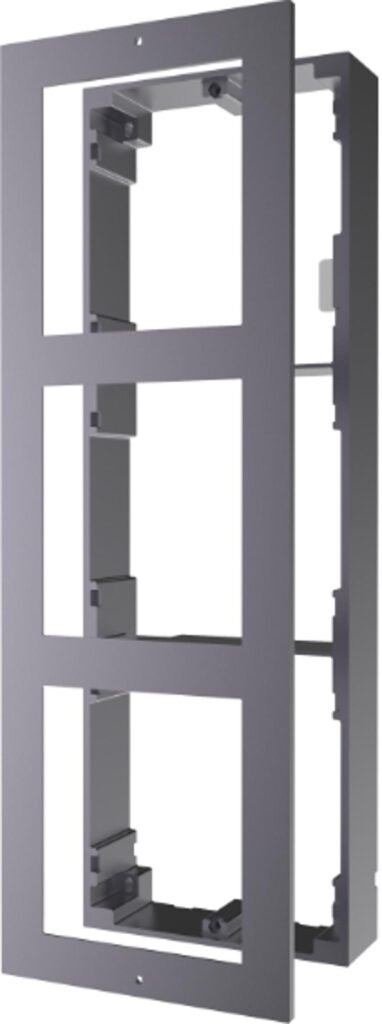

Aviation aluminium surface mounting bracket for three KD8 door station modules, with three module frames, three front panels, a button cover and fixings.
The DS-KD-ACW3 is the three-position surface bracket, carrying a main camera module plus two others on a wall face with no cavity required.
Three positions covers the common apartment-entrance combination — camera module, keypad and a nametag or display module — from a single mounting.
The kit includes three module frames, three front panels, a button cover and the necessary accessories, in aviation aluminium at 500g.
The cover measures 320.8 x 107 x 4mm with the installation frame at 320.8 x 107 x 32.7mm, rated -40°C to 55°C. A matching three-gang rain shield is available for exposed entrances.
| 779 g (with packing) | |
| Working temperature | -40° C to +55° C(-40° F to 131° F) |
| Working humidity | 10% to 95% |
| Dimensions | Cover: 320.8 × 107 × 4 mm(12.6" × 4.21" ×0.16") |
| Material | Aviation Aluminum |
