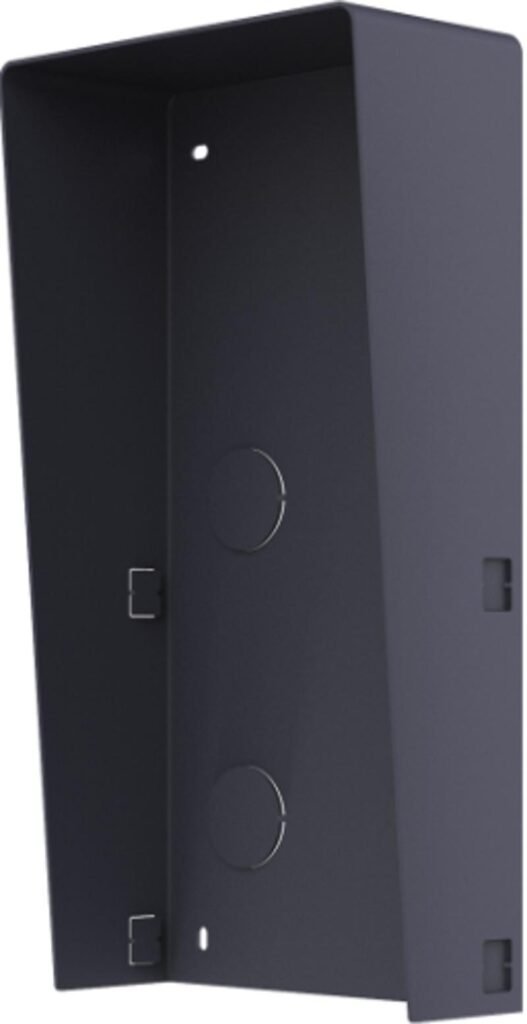

SKU: DS-KABD8003-RS2
SECC steel rain shield for a two-module surface-mounted door station, fitting DS-KD8003-IME1 and IME2 stations. 224mm wide, rated -40°C to 60°C.
The DS-KABD8003-RS2 covers a two-module surface-mounted door station, keeping rain off both the camera module and the keypad, display or nametag module beside it.
Protecting the second module matters as much as the first: keypads and nametag buttons are the parts that fail from water ingress, and they sit exposed on the same frontage.
SECC electro-galvanised steel construction is specified for permanent outdoor use. Installation uses a supplied levelling sticker as a drilling template and four expansion bolts, with module connecting cables threaded through the frame before the cover is fixed with the supplied hex wrench.
It measures 224 x 116.4 x 58mm at 500g, rated -40°C to 60°C at 10% to 95% humidity.
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
|---|---|
| Working humidity | 10% to 95% |
| 500g | |
| Dimension (W × H × D) | 224x 116.4×58 mm (8.82" x 4.58" x 2.28") |
| Installation | 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. |
| Material | SECC |
