SKU: DS-KD-ACF2-PLASTIC

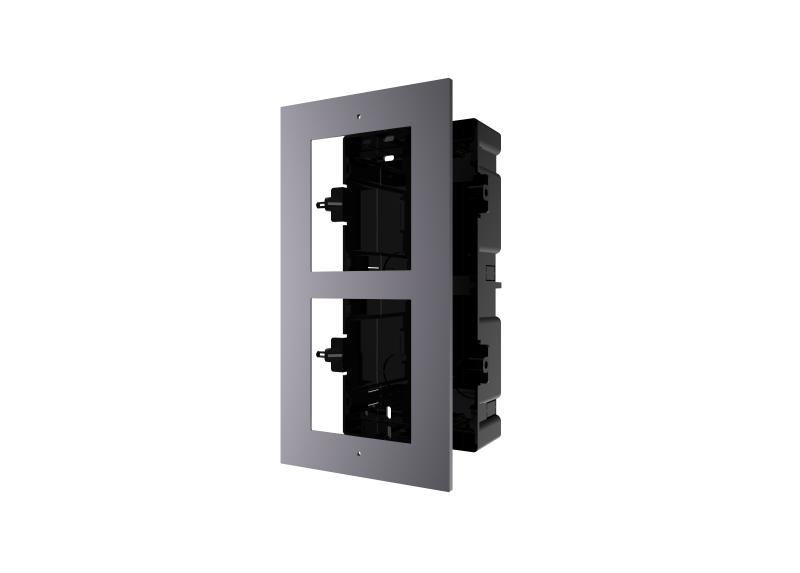

Flush mounting bracket for two KD8 door station modules, with plastic gang box, aluminium cover, screws and cabling included.
The DS-KD-ACF2/Plastic recesses a two-module door station — typically the main camera module plus a keypad, display or nametag module — into the wall face.
Everything for the installation is in the box: plastic gang box, aluminium cover, screws and cabling, so first fix and second fix can be separated cleanly.
Sizing the bracket is a decision to make up front, since changing it later means re-cutting masonry. Where a second module may be added in future, specify this bracket now and fit a blank module in the spare position.
The cover measures 236 x 124 x 14.5mm over a 219 x 107 x 45mm gang box, weighs 290g, and is rated -40°C to 55°C.
| Net weight: 290 g | |
| Working temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working humidity | 10% to 95% |
| Dimension (W × H × D) | Cover: 236 × 124 × 14.5 mm(9.29" × 4.88" ×0.57") Gang Box: 219 × 107 × 45 mm(8.6" × 4.2" ×1.8") |
| Material | Cover: Aluminum |
