SKU: DS-PDPG12P-EG2

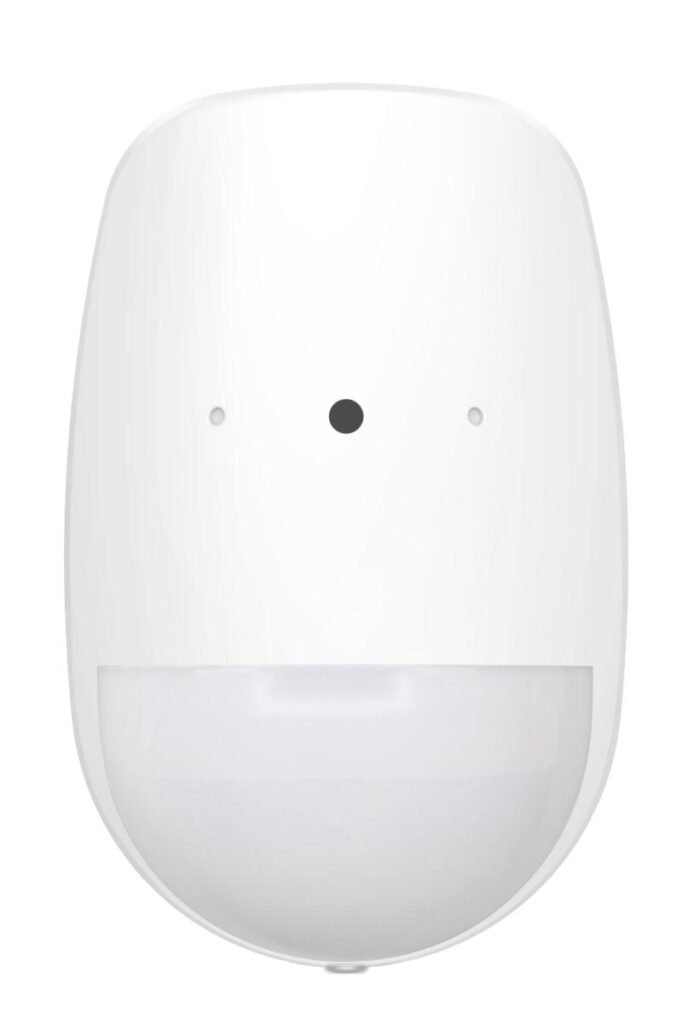

The DS-PDPG12P-EG2 is a wired PIR-Glass Break Detector from Hikvision's wired intrusion range. It provides 12m detection at 85.9° and a 9 to 16 VDC supply. Features include up to 30KG pet immunity and selectable EOL resistors. Measures 65.5mm × 103mm × 48.5mm and operates from -10 °C to 55 °C (14 °F to 131 °F).
| Detection Method | Passive Infrared;Acoustic Sensor |
|---|---|
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Pet Immunity | 30Kg |
| PIR Sensitivity | Auto,Pet |
| White Light Filter | 6500lux |
| Glass Break Range | 8m |
| Glass Type | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass Break Sensitivity | Potentiometer Adjustment |
| Glass Thickness | 2.4mm to 6.4mm |
| Digital Temperature Compensation | Support |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Creep Zone Protection | Support |
| Digital Processing | Support |
|---|---|
| Sealed Optics | Support |
| Tamper Protection | Front |
| Alarm Output | Normally Closed |
|---|---|
| LED Indicator | Green(PIR),Red(BG),Blue(alarm) |
| Transmission Method | Wired |
|---|
| Power Supply | 9 to 16 VDC |
|---|---|
| Typical Voltage | 12 VDC |
| Power Consumption | Maximum current：26mA @12VDC Quiescent current：36mA@12VDC |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5mm×103mm×48.5mm |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
