SKU: DS-PDBG8-EG2-WB

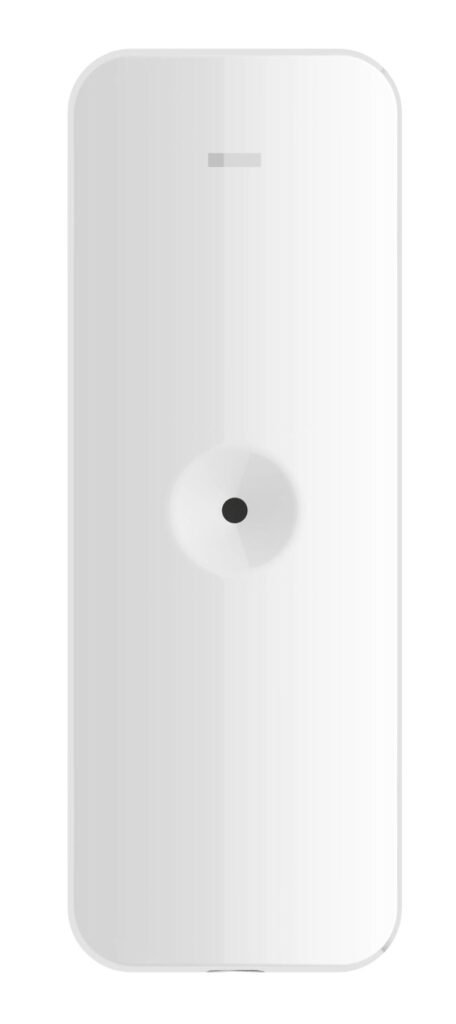

The DS-PDBG8-EG2-WB is a wireless Glass Break Detector from Hikvision's AX PRO wireless alarm range. It provides 8m detection at 120° and Two-Way RF Wireless. Features include high quality Omni-directional microphone sensor and fully remote configurable through App. Measures 38.8mm × 107.0mm × 24.5mm and operates from -10 °C to 55 °C (14 °F to 131 °F).
| Detection Method | Acoustic Sensor |
|---|---|
| Detection Range | 8m |
| Detection Angle | 120° |
| Sensitivity | 2m;4m;6m;8m |
| Glass Type | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass Thickness | 2.4mm to 6.4mm |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Digital Processing | Support |
|---|---|
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Alarm Input | Normally Closed;Normally Open;Impulse Count |
|---|---|
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue(Alarm) |
| Transmission Technology | Tri-X Wireless |
|---|---|
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | Support |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
| Power Supply | Battery Powered |
|---|---|
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| Standard Battery Life | Up to 5 years (standby time) |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 38.8mm × 107.0mm × 24.5mm |
| Mounting Method | Wall;Ceiling |
| Application Scenario | Indoor |
