SKU: DS-PDPG12P-EG2-WB

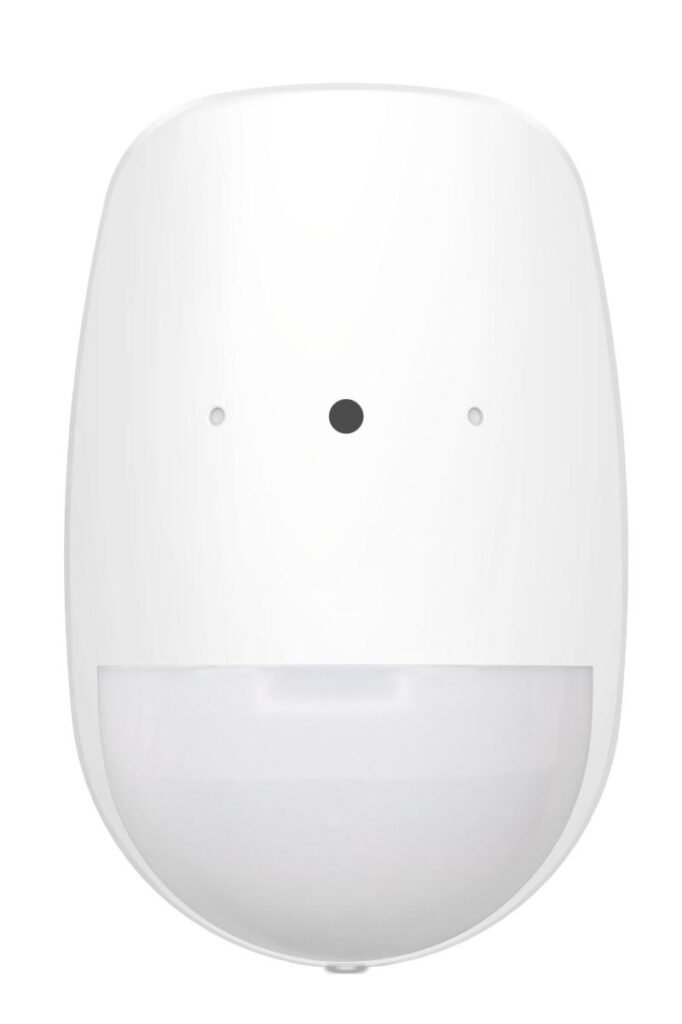

The DS-PDPG12P-EG2-WB is a wireless PIR-Glass Break Detector from Hikvision's AX PRO wireless alarm range. It provides 12m detection at 85.9° and Two-Way RF Wireless. Features include up to 30KG pet immunity and fully remote configurable through App. Measures 65.5mm × 103mm × 48.5mm and operates from -10 °C to 55 °C (14 °F to 131 °F).
| Detection method | Passive Infrared;Acoustic Sensor |
|---|---|
| Detection range | 12m |
| Detection angle | 85.9° |
| Detection zones | 52 |
| Detectable speed | 0.3～2m/s |
| Pet immunity | 30 kg |
| PIR sensitivity | Auto,High,Pet |
| White light filter | 6500lux |
| Glass break range | 8m |
| Glass type | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass break sensitivity | 0 to 2 meters: Level 2;2.1 to 4 meters: Level 3;4.1 to 6.4 meters: Level 4;6.6 to 7.1 meters: Level 5;7.2 to 8 meters: Level 6;Additional: Level / 8 is for more sensitive (Not compliance to EN50131-2-7-1) |
| Glass thickness | 2.4mm to 6.4mm |
| Digital temperature compensation | Support |
| Glass size | 0.3m x 0.3m to 3m x 3m |
| Creep zone protection | Support |
| Digital processing | Support |
|---|---|
| Sealed optics | Support |
| Tamper protection | Front;Rear |
| Environment temperature Indicator | Support |
| Signal strength indicator | Support |
| Power switch | Power Up Enrolling |
|---|---|
| LED indicator | Green(PIR),Red(BG),Blue(alarm) |
| Transmission technology | Tri-X Wireless |
|---|---|
| Transmission method | Two-Way RF Wireless |
| Transmission frequency | 433MHz |
| Transmission security | Support |
| Transmission range(free space) | 1 km |
| Frequency hopping | Support |
| Enrolling method | Power up;Remote ID;QR Code |
| Standard battery life | Up to 4 years (standby time) |
|---|---|
| Power supply | Battery Powered |
| Battery type | CR123A × 2 |
| Typical voltage | 3V |
| Operation temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation humidity | 10% to 90% |
| Dimension(W×H×D) | 65.5mm×103mm×48.5mm |
| Mounting height | 1.8 to 2.4m |
| Mounting method | Wall |
| Application scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
