SKU: DS-PDTPH-E-WB

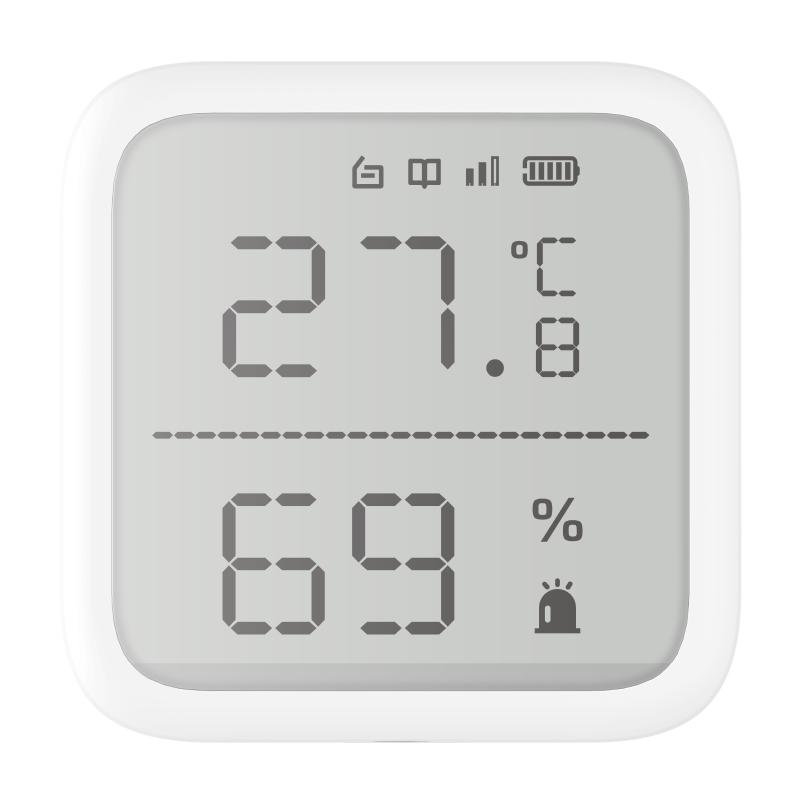

The DS-PDTPH-E-WB is a wireless Temperature Detector from Hikvision's AX PRO wireless alarm range. It provides a -10 °C to 55 °C（standalone） -35 °C to 99 °C（with included probe） detection range and Two-Way RF Wireless. Features include big screen display, modular design for multiple use applications and fully remote configurable through App. Measures 62.6mm × 62.6mm × 18mm and operates from -10 °C to 55 °C (14 °F to 131 °F).
| Detection Method | Temperature Sensor |
|---|---|
| Detection Range | -10 °C to 55 °C（standalone） -35 °C to 99 °C（with included probe） |
| Digital Processing | Support |
|---|---|
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| LED Indicator | On Screen Display |
|---|
| Screen Size | 2.7 inch |
|---|
| Transmission Technology | Tri-X Wireless |
|---|---|
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 800m |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
| Power Supply | Battery Powered |
|---|---|
| Battery Type | AAA × 2 |
| Typical Voltage | 3V |
| Standard Battery Life | Up to 2 years (standby time) |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 62.6mm × 62.6mm × 18mm |
| Mounting Method | Wall |
| Application Scenario | Indoor Standalone/with included probe |
