SKU: CX-EX04TL

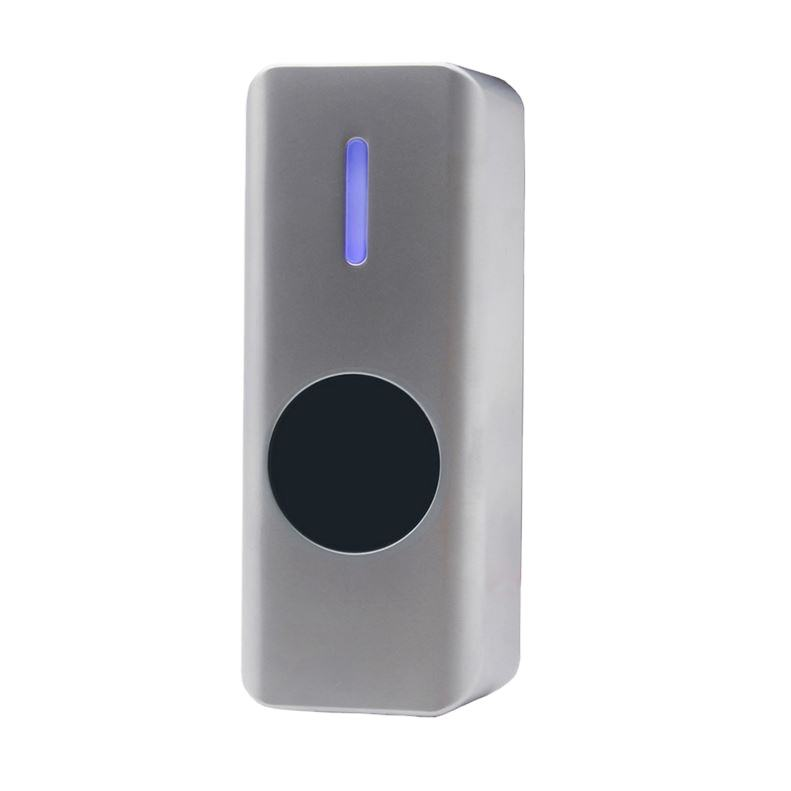

CX-EX04TL Touchless Exit Button
Touchless Infrared Exit Button – Surface Mount
The Connix CX-EX04TL Touchless Exit Button is a surface-mounted, infrared exit switch designed for hygienic and convenient hands-free door and gate activation. Simply place your hand within the detection range to trigger the exit signal without physically touching the button.
Featuring NO/NC/COM relay output, illuminated operation and a robust zinc-alloy construction, the CX-EX04TL is suitable for access control, automatic doors, gates and other exit automation applications.
| Model | CX-EX04TL |
|---|---|
| Specification | Details |
| Product Type | Touchless Infrared Exit Button |
| Mounting | Surface Mount |
| Operating Voltage | DC 12V |
| Maximum Current | 3A |
| Output Contact | NO / NC / COM |
| Detection Range | 0.1–10 cm |
| Indicator | Full Illuminated LED |
| LED | Yes |
| Head Type | Round |
| Material | Zinc Alloy & Plastic |
| Terminal Type | Quick Connect Terminal |
| Mechanical Life | 100,000 operations |
| Operating Temperature | -20°C to +55°C |
| Relative Humidity | 0–95% RH |
| Protection Rating | IP55 |
| Application | Door / Gate / Exit / Automation Control |
| Mounting Type | Surface Mount |
| Dimensions | 80 × 30 × 25 mm |
