SKU: OPTEX FLX-S-ST
FLX-S-ST: Indoor PIR Motion Detector (Standard)
A reliable indoor passive infrared detector for wall or corner mounting. It offers wide coverage up to 12 m at 85° or a long narrow beam up to 18 m, and digital temperature compensation (SMDA) keeps detection stable as conditions change. With a low current draw, a tamper output that opens when the cover is removed, and an operating range of -20°C to +50°C, it suits home and commercial alarm installations. A hardwired indoor PIR detector with a rotatable lens, so you can choose 12 m wide coverage or 18 m narrow coverage to suit the room. A new pyroelectric element gives superior pet tolerance, and the detector is Grade 2 rated. It mounts on a wall or in a corner at a variable height of 2.0 to 3.0 m.

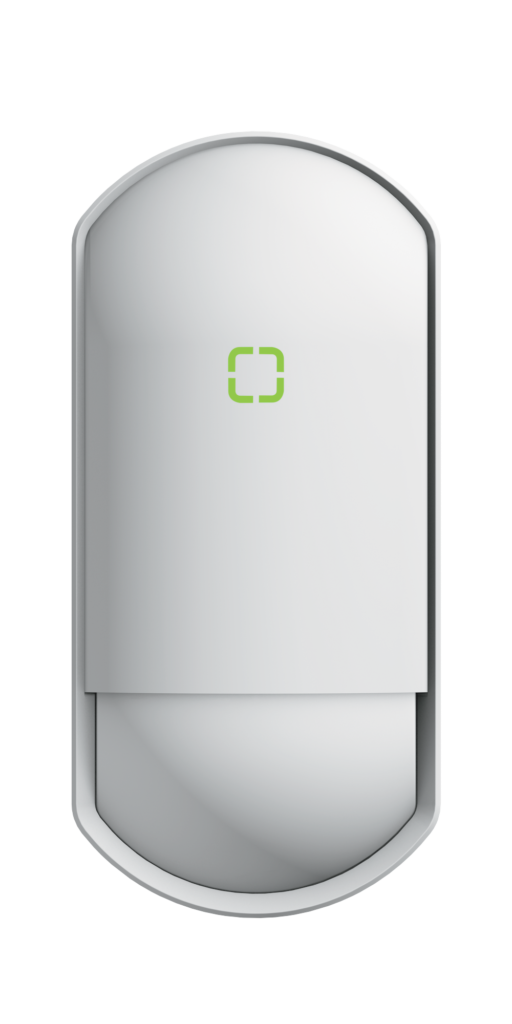

OPTEX FLX-S-ST FLIPX Standard PIR – 12m Wide-Angle Pet-Immune Motion Detector
| Model | FLX-S-ST |
|---|---|
| Specification | Detail |
| Detection method | Passive infrared (PIR) |
| Coverage | Wide: 12 m, 85° / Narrow: 18 m, 5° |
| Mounting | Wall or corner (indoor) |
| Mounting height | 2.0 to 3.0 m |
| Power input | 9.5 to 16 VDC |
| Current draw | 8 mA normal, 11 mA max at 12 VDC |
| Alarm output | N.C., 24 VDC 0.1 A max (resistive load) |
| Tamper output | N.C., 24 VDC 0.1 A max (opens when cover is removed) |
| Warm-up period | Approx. 60 s |
| Temperature compensation | Digital (SMDA) |
| Operating temperature | -20°C to +50°C |
